Solenoid-Multi Displacement System Cyl 1

Component ID: 548

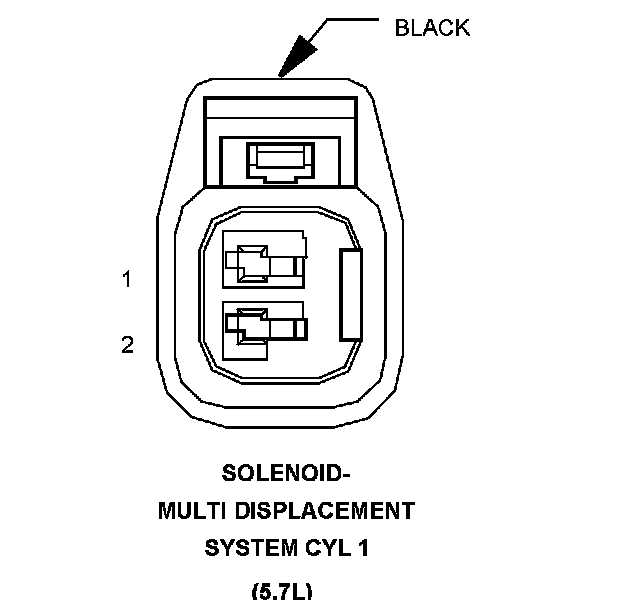

Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1
Color : BLACK
# of pins : 2
Qualifier : (5.7L)




Pin Circuit Description
1 K451 20BR/WT MDS SOL CONTROL NO. 1
2 Z42 20BK/LG GROUND
