C102

Component ID: 22
Component : C102

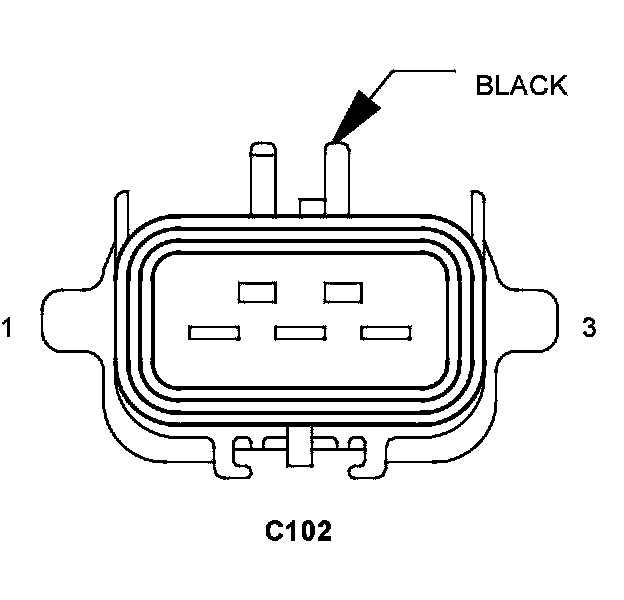

Connector:
Name : C102
Color : BLACK
# of pins : 3
Gender : MALE




Pin Circuit Description
1 A803 16LB GEN SENSE
2 K125 16BR/DG GEN FIELD CONTROL
3 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT

Component Location - 1




Component Location - 13




Component Location - 12

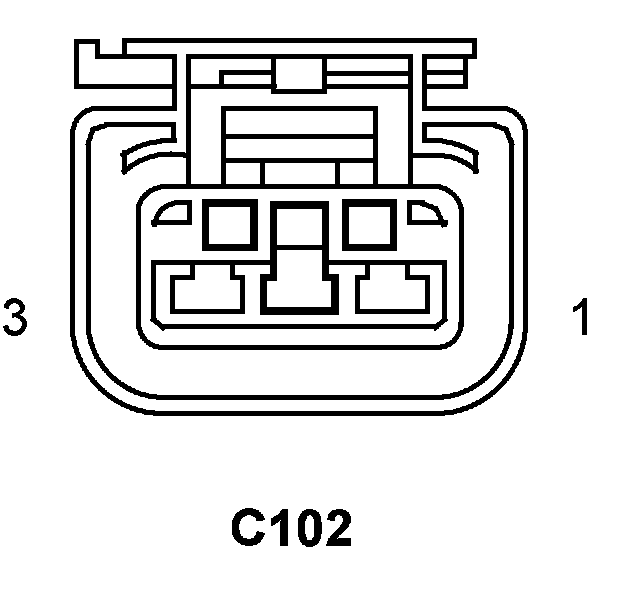

Connector:
Name : C102
Color : BLACK
# of pins : 3
Gender : FEMALE




Pin Circuit Description
1 A803 16LB GEN SENSE
2 K125 16BR/DG GEN FIELD CONTROL
3 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT

Component Location - 1




Component Location - 13




Component Location - 12
