Commander Base, 4.7 N, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window System - Electrical Diagnostics
>>
Power Windows - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B185F-Passenger Window Control Circuit Low - PDM
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

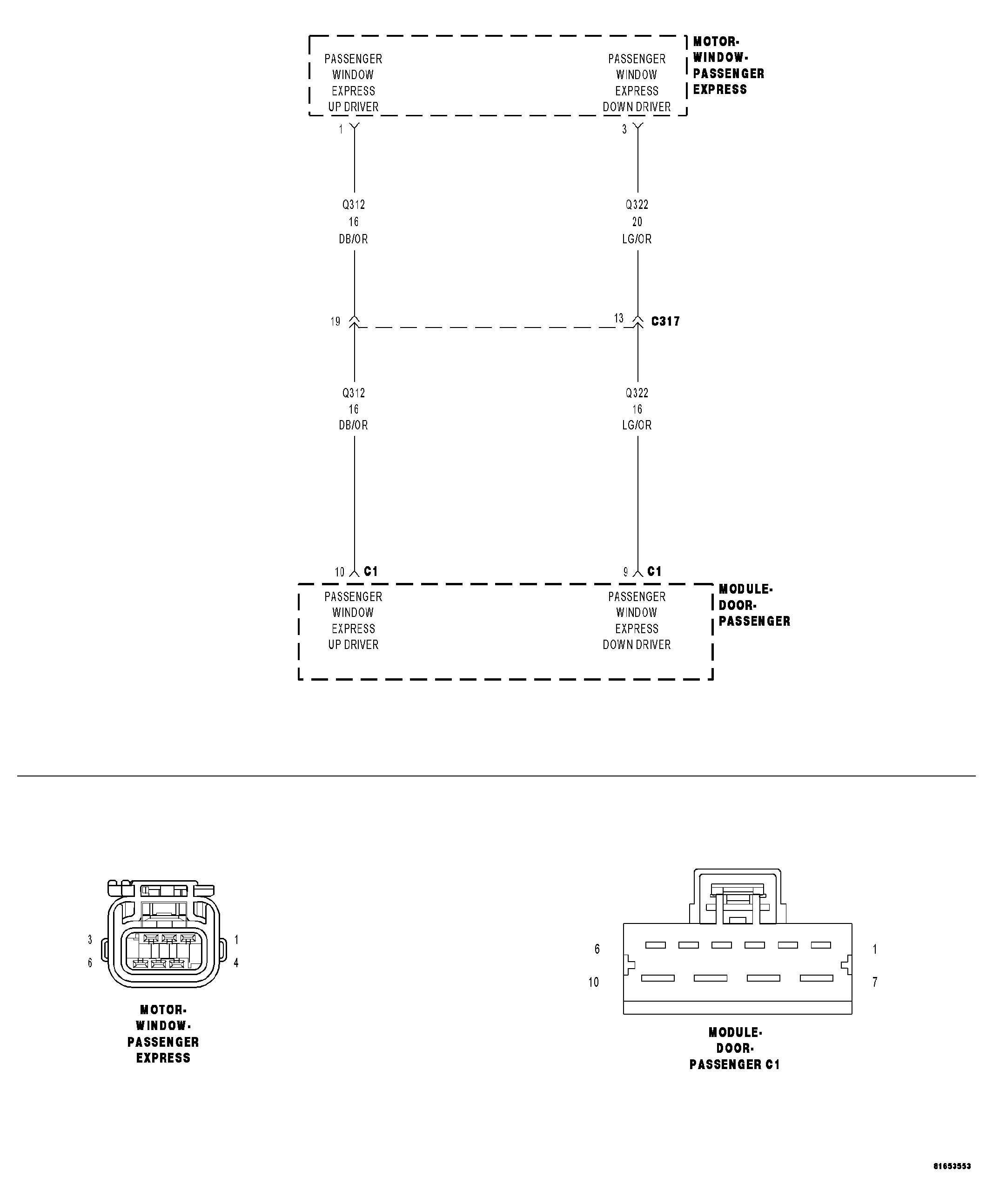

Fig 1: Passenger Window Switch Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
