Module-Front Control

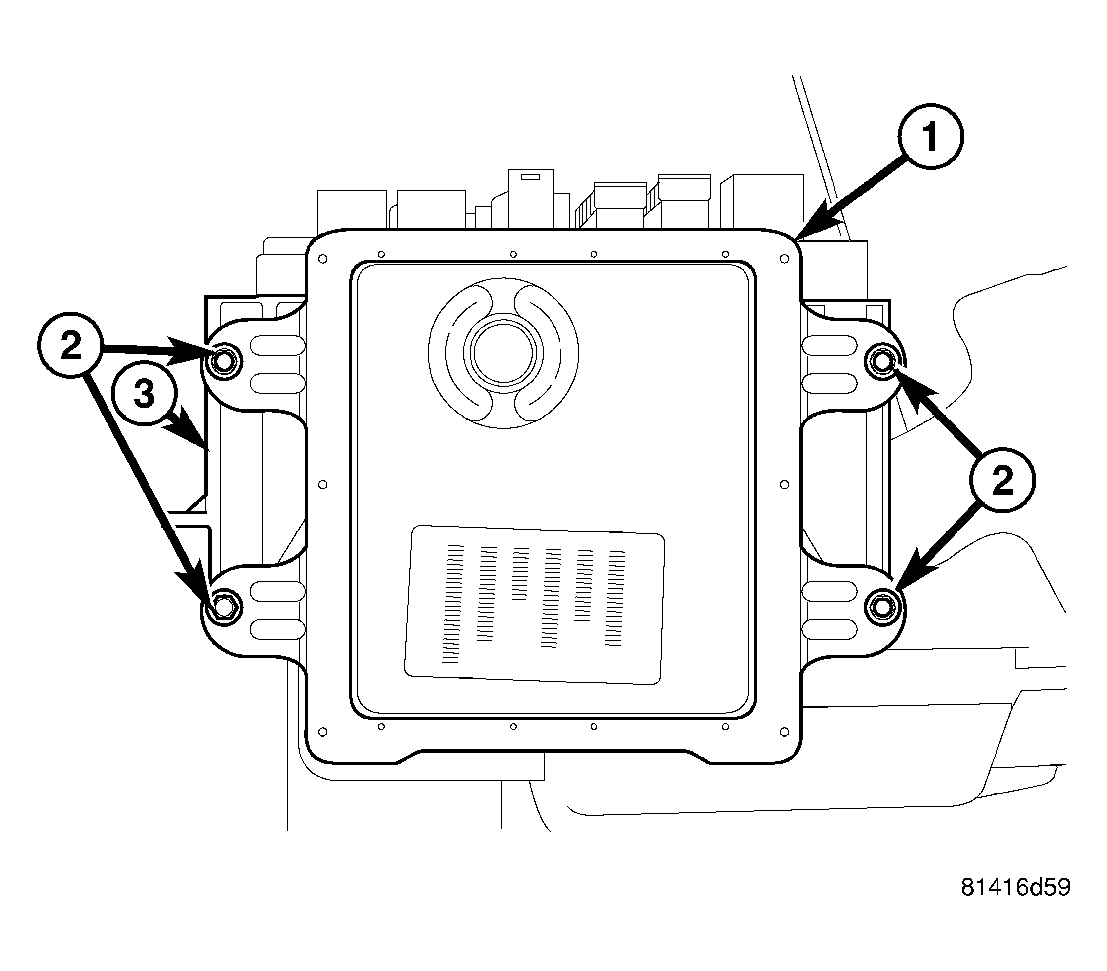

Fig 1: Removing/Installing Front Control Module
GC0027614Courtesy of CHRYSLER LLC
CAUTION: Front Control Module (FCM) damage may occur if the module case comes in contact with the battery while still connected. Always disconnect the battery negative cable prior to removal of the FCM.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the Integrated Power Module (IPM) from the engine compartment, refer to REMOVAL .
  3. Remove the four fasteners (2) securing the Front Control Module (FCM) (1) to the IPM (3).
  4. Separate the FCM from the IPM by pulling the two straight away from each other to disengage the electrical connector.
