Commander Overland, RWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Electronic Control Modules - Electrical Diagnostics
>>
Electronic Control Modules - Electrical Diagnostics
>>
DTC Troubleshooting
>>
*No Response From Abs (Antilock Brake Module)
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

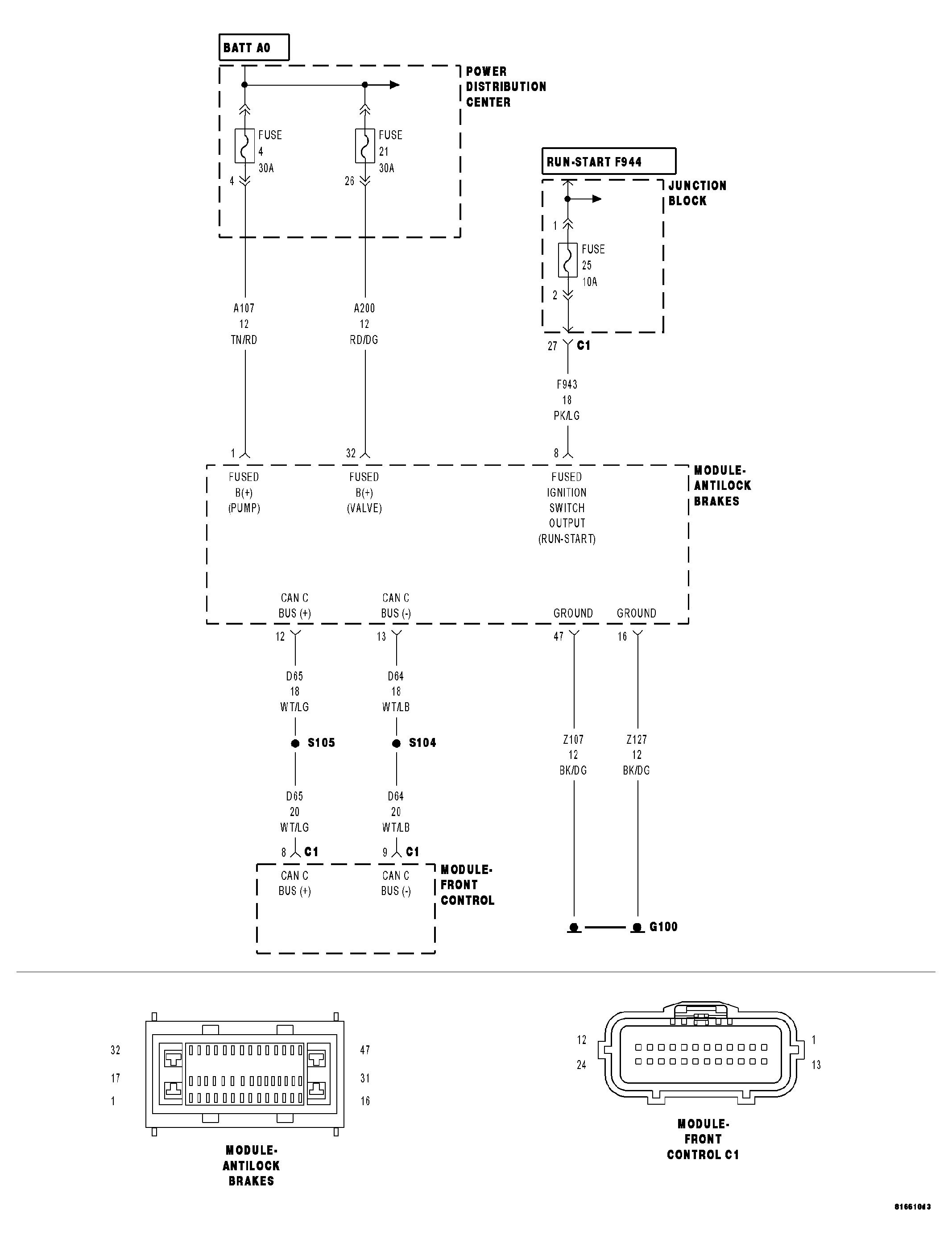

Fig 1: Antilock Brake Module Power, Ground & Communication Circuits Schematic
