*No Response From DDM (Driver Door Module)
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

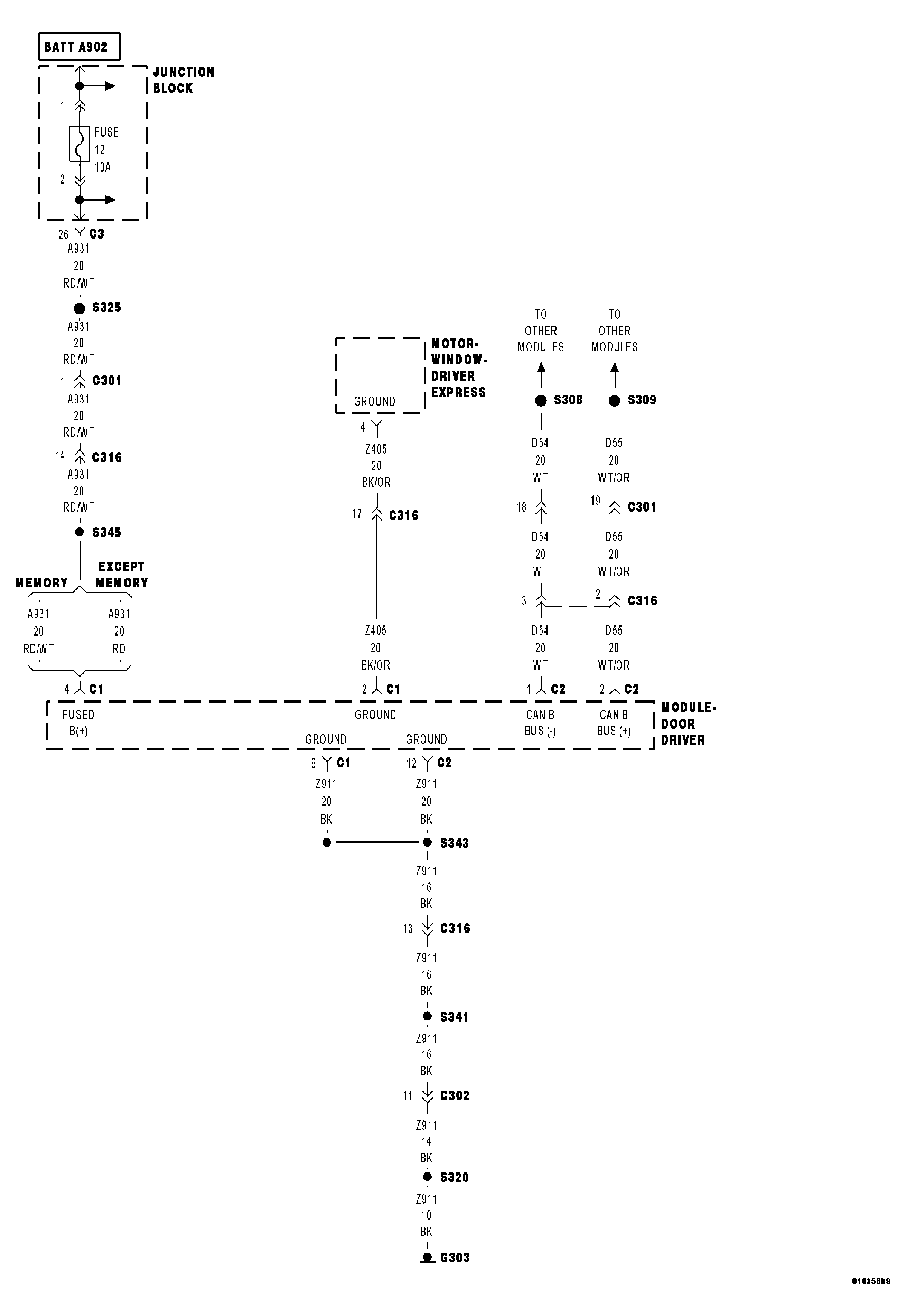

Fig 1: Driver Door Module Power, Ground & Communication Circuits Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
