Diagnostic Test

TEST FOR INTERMITTENT CONDITION
Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

Does the scan tool display a red X next to the module?

Yes
1. Go To step 2.
No
1. The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
(A931) FUSED B(+) CIRCUIT OPEN OR SHORTED

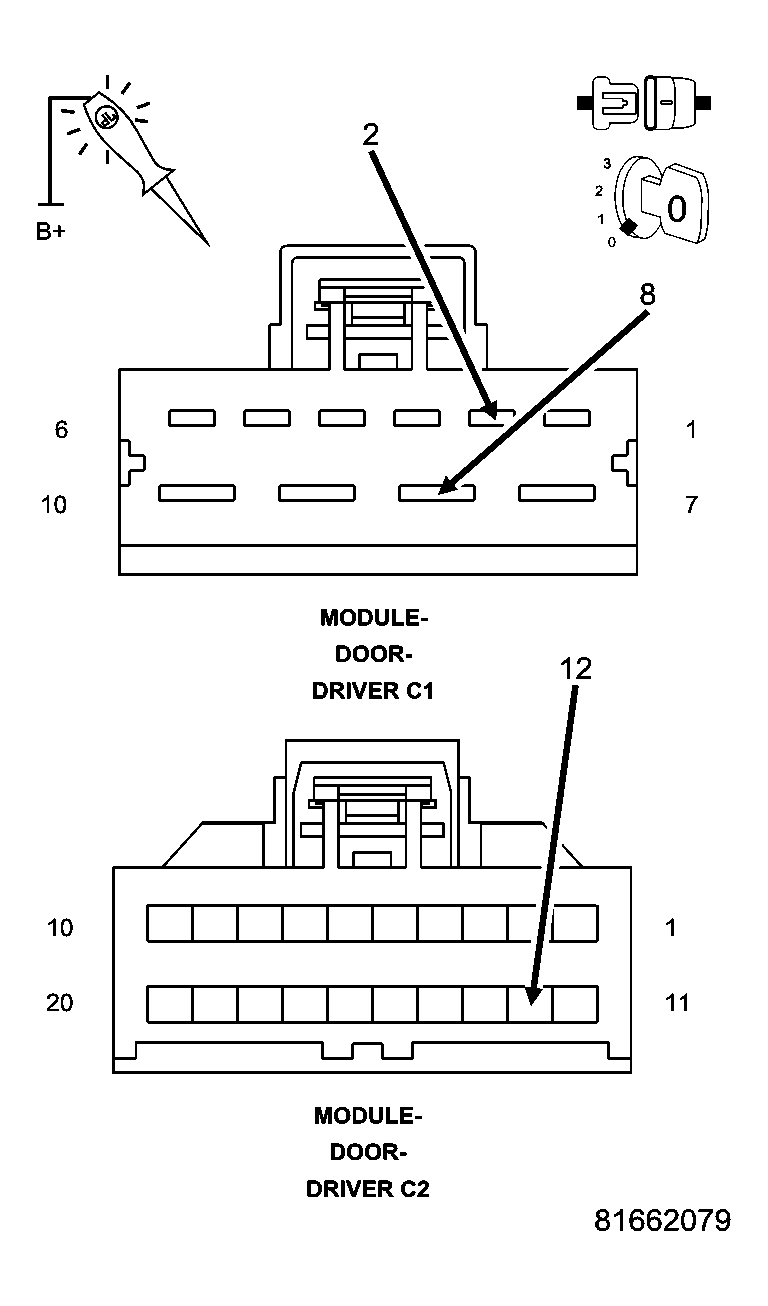

Fig 1: Checking (A931) Fused B(+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Driver Door Module C1 and C2 harness connectors.

Using a 12-volt test light connected to ground, check the (A931) Fused B(+) circuit.

Does the test light illuminate brightly?

Yes
1. Go To step 3.
No
1. Repair the (A931) Fused B(+) circuit for an open or short.
2. Perform BODY VERIFICATION TEST .
GROUND CIRCUIT OPEN

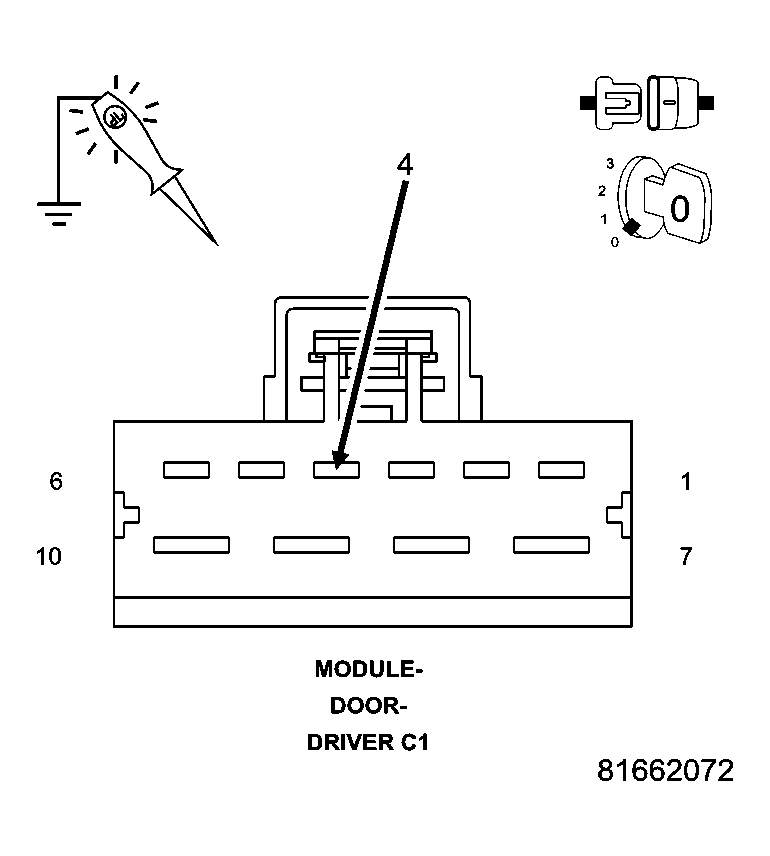

Fig 2: Checking Ground Circuit
Courtesy of CHRYSLER LLC

Using a 12-volt test light connected to 12-volts, check each ground circuit.

Does the test light illuminate brightly for each circuit?

Yes
1. Go To step 4.
No
1. Repair the ground circuit for an open.
2. Perform BODY VERIFICATION TEST .
(D55) AND (D54) CAN B BUS CIRCUITS OPEN

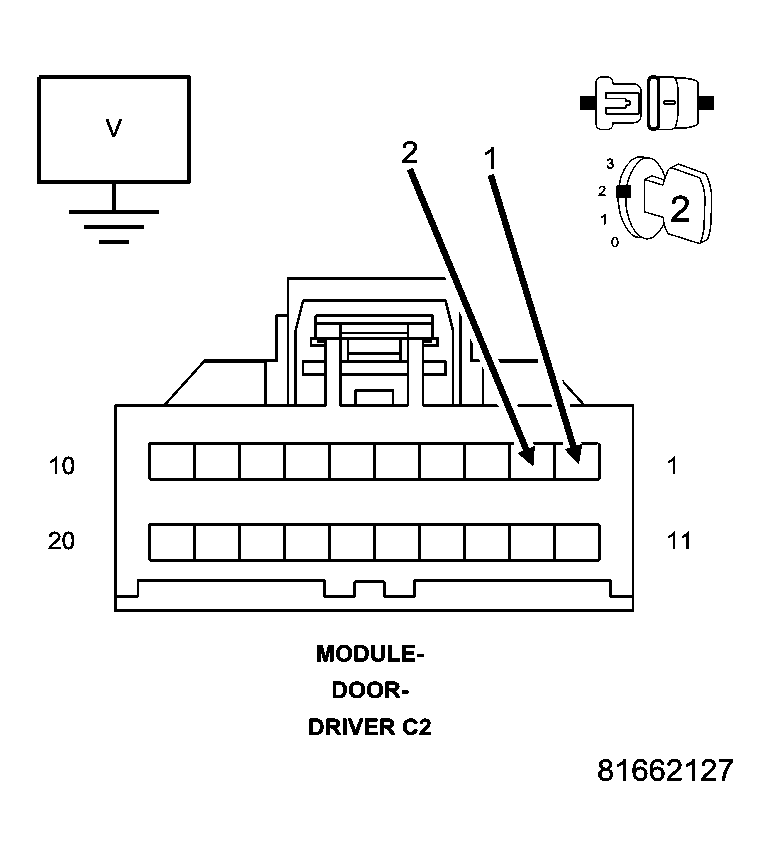

Fig 3: Measuring Voltage Between (D54)/(D55) CAN B Bus (-)/(+) Circuit And Ground
Courtesy of CHRYSLER LLC

NOTE: One open circuit will not cause this condition.

Measure the voltage between the (D54) CAN B Bus (-) circuit and ground.

Measure the voltage between the (D55) CAN B Bus (+) circuit and ground.

Is there any voltage present on either circuit?

Yes
1. Replace the Driver Door Module in accordance with the service information.
2. Perform BODY VERIFICATION TEST .
No
1. Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
2. Perform BODY VERIFICATION TEST .
