Electronic Control Modules - Electrical Diagnostics
>>
Electronic Control Modules - Electrical Diagnostics
>>
DTC Troubleshooting
>>
*No Response From ESM (Shift Lever Assembly) - Nag1/Diesel
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

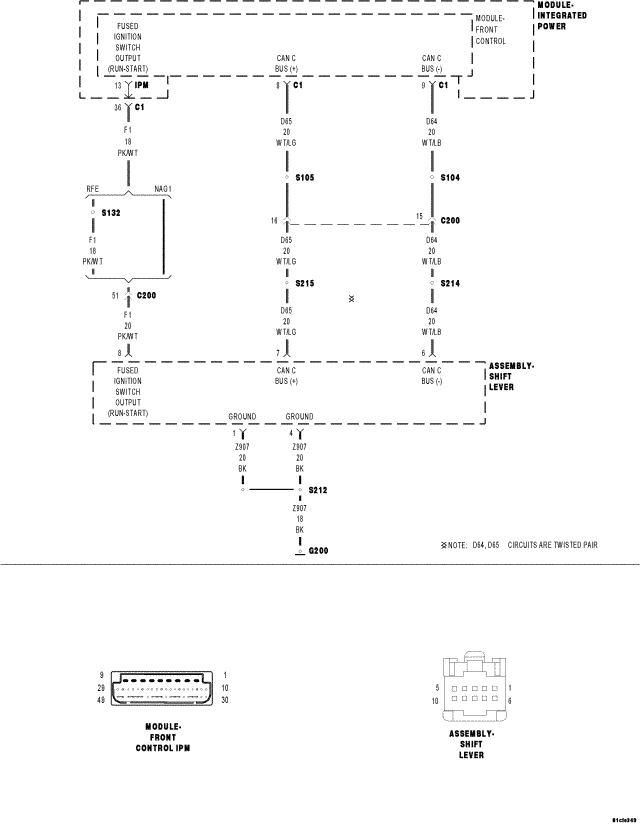

Fig 1: Shift Lever Assembly - Power, Ground & Communication Circuits Schematic
Courtesy of CHRYSLER LLC
