Compass 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution
>>
Wiring Diagram Index
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Wiring Diagram Index

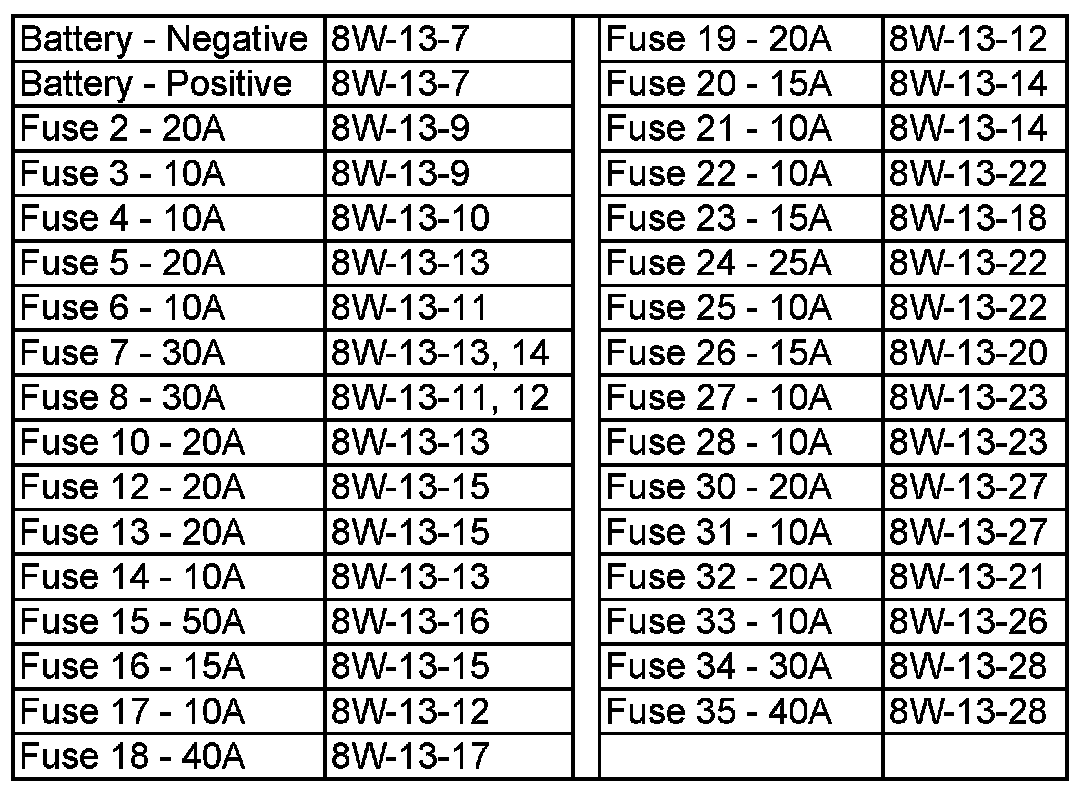

Fuse Block Circuits:

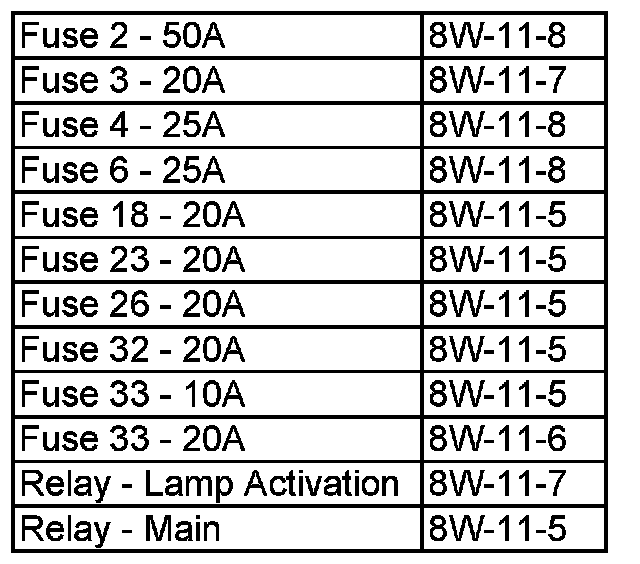

Integrated Power Module Circuits:
