Starter Motor: Locations

Component ID: 118
Component : STARTER

Connector:

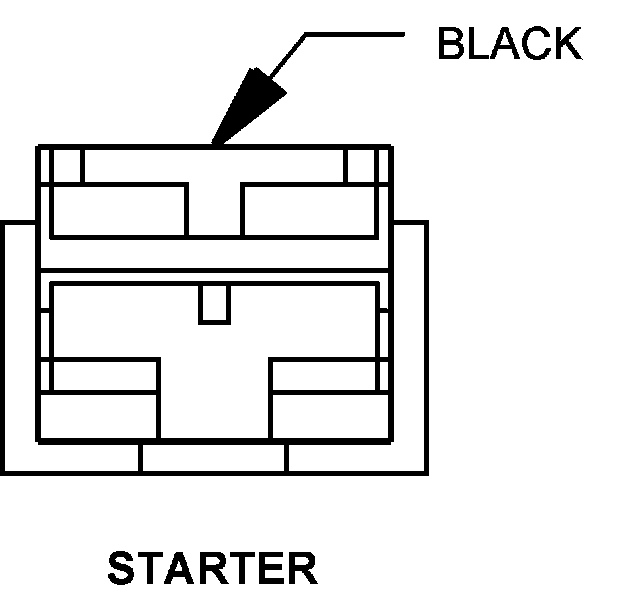

Name : STARTER
Color : BLACK
# of pins : 1




Pin Circuit Description
1 T750 16YL/GY STARTER CONTROL OUTPUT

Component Location - 14




Component Location - 15




Component Location - 18





Connector:

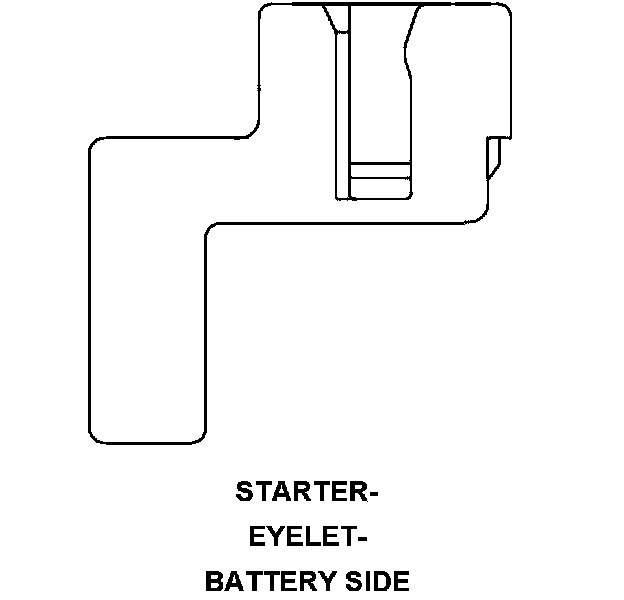

Name : STARTER-EYELET-BATTERY SIDE
Color :
# of pins : 1




Pin Circuit Description
1 A0 4RD B(+)

Component Location - 14




Component Location - 15




Component Location - 18





Connector:

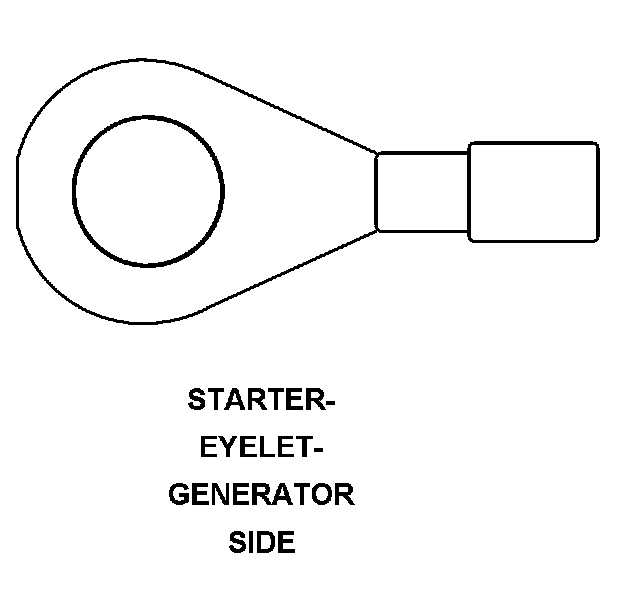

Name : STARTER-EYELET-GENERATOR SIDE
Color :
# of pins : 1




Pin Circuit Description
1 A802 8LB B(+)
Pin Circuit Description
1 A802 10DG B(+)

Component Location - 14




Component Location - 15




Component Location - 18
