P0707-Transmission Range Sensor Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

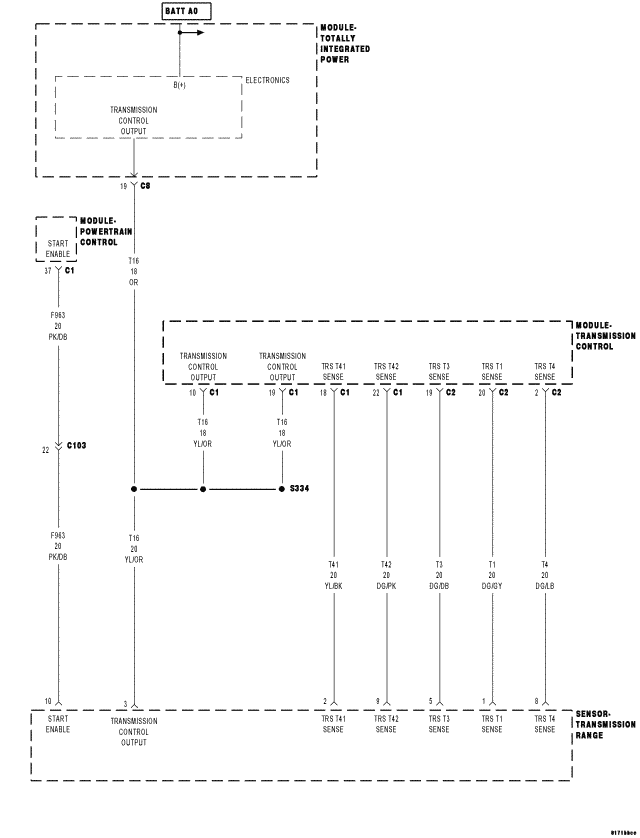

Fig 1: Transmission Range Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
