P0826-Up/Down Shift Switch Circuit
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

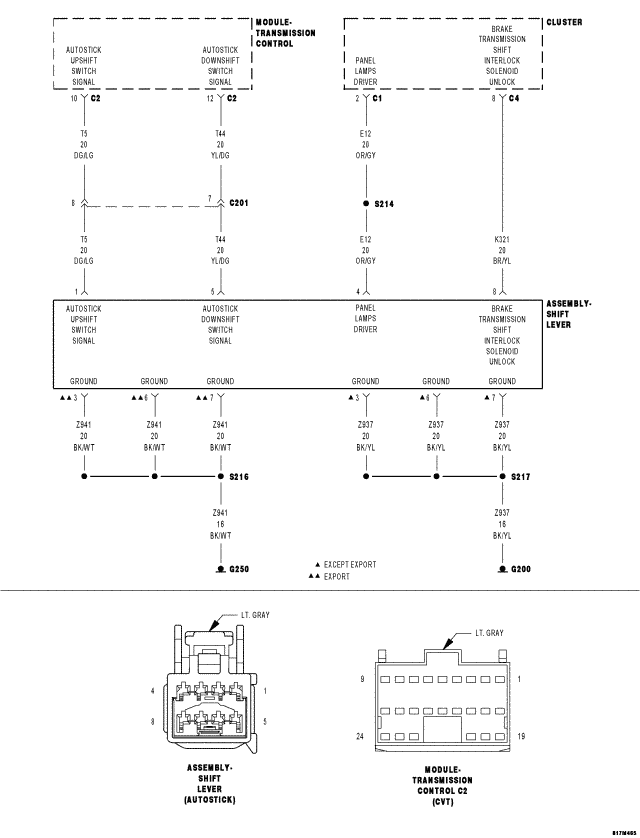

Fig 1: Shift Lever Assembly Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
