Fuel Pump Module (AWD) Connector End View (C2)

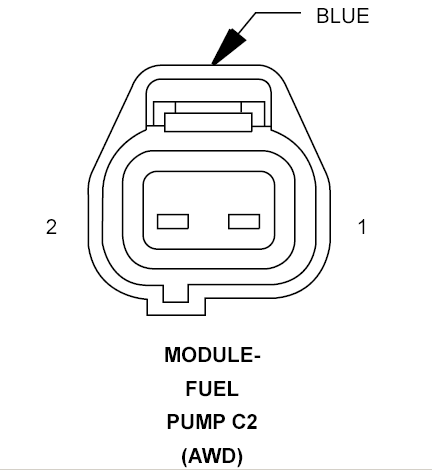

MODULE-FUEL PUMP C2 - BLUE 2 WAY (AWD)

GMK880187Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z965 20BK/GY GROUND
2 N5 20DB/BK FUEL LEVEL SIGNAL 2
