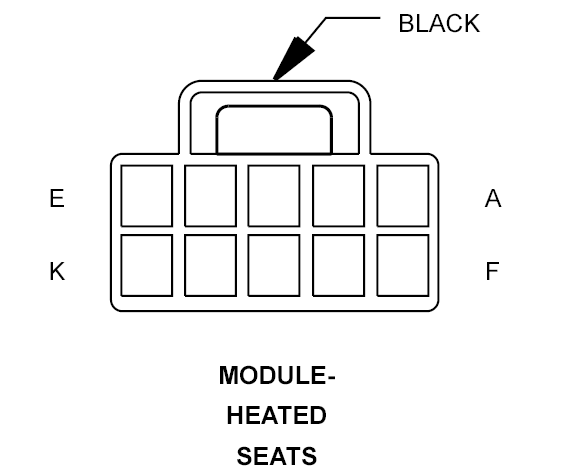

Heated Seats Module Connector End View
MODULE-HEATED SEATS - BLACK 10 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
- |
- |
| B |
- |
- |
| C |
- |
- |
| D |
P187 20LG/BR |
LEFT SEAT HEATER B(+) DRIVER |
| E |
F937 18PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN) |
| F |
Z960 18BK/LB |
GROUND |
| G |
- |
- |
| H |
- |
- |
| J |
D506 20WT/DG |
LIN BUS |
| K |
P188 20LG/VT |
RIGHT SEAT HEATER B(+) DRIVER |
