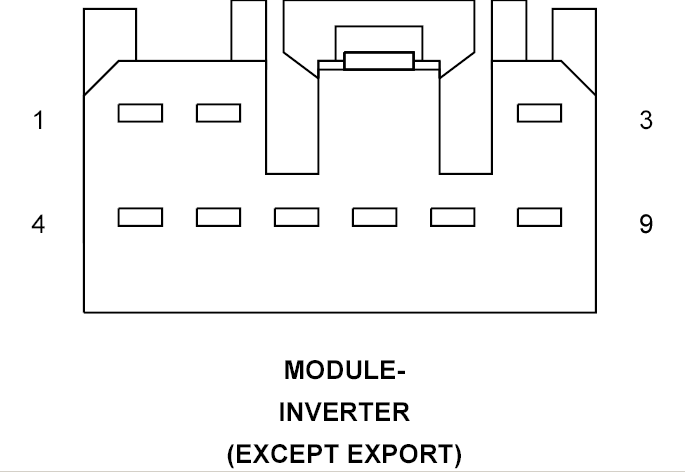

Inverter Module (Except Export) Connector End View
MODULE-INVERTER - 9 WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A999 16RD/PK |
FUSED B(+) |
| 2 |
- |
- |
| 3 |
P801 18LG/PK |
110 VOLT AC LINE 1 |
| 4 |
Z940 14BK/LG |
GROUND |
| 5 |
P805 18LG/DB |
INVERTER ENABLE SWITCH SIGNAL |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
P809 18LG/LB |
110 VOLT AC COMMON |
| 9 |
- |
- |
