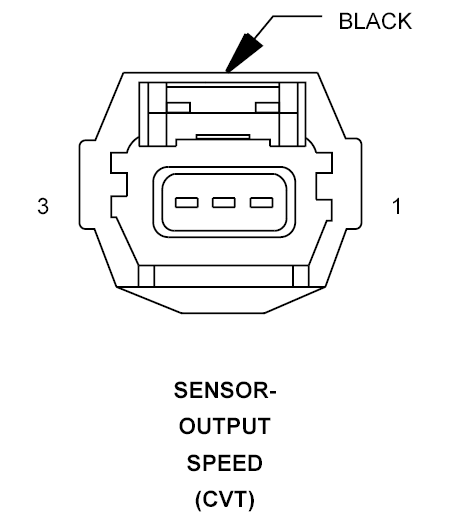

Output Speed Sensor (Continuously Variable Transmission) Connector End View
SENSOR-OUTPUT SPEED - BLACK 3 WAY (CVT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T16 18YL/OR |
TRANSMISSION CONTROL OUTPUT |
| 2 |
T52 18DG/WT |
OUTPUT SPEED SIGNAL |
| 3 |
T130 18TN/DG |
OUTPUT SPEED SENSOR GROUND |
