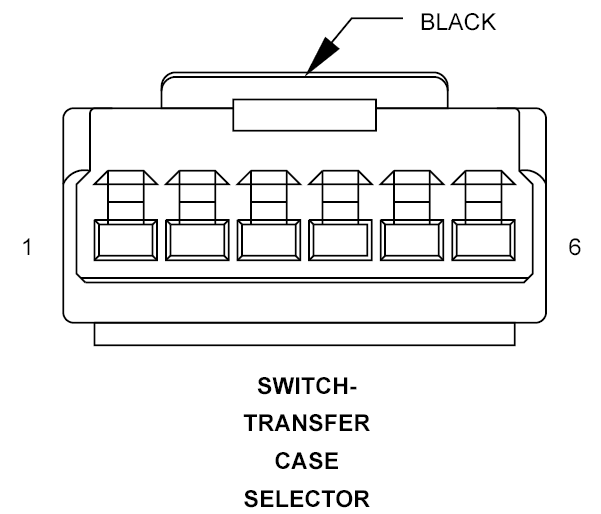

Transfer Case Selector Switch Connector End View
SWITCH-TRANSFER CASE SELECTOR - BLACK 6 WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z940 20BK/LG |
GROUND |
| 2 |
K77 20BR/WT |
TRANSFER CASE POSITION SENSOR INPUT |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
E12 20OR/GY |
PANEL LAMPS DRIVER |
| 6 |
Z940 20BK/LG |
GROUND |
