Removal-Gas Engine

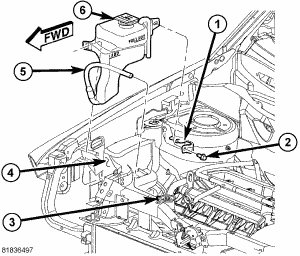

| 1 - MOUNTING BRACKET |
| 2 - BOLT |
| 3 - RADIATOR HOSE TEE |
| 4 - WASHER RESERVOIR |
| 5 - HOSE |
| 6 - COOLANT RECOVERY CONTAINER |
- Siphon coolant from coolant recovery container.
- Remove return hose (5) from upper radiator hose tee (3).
- Remove coolant recovery bottle mount bolt (2).
- Disengage coolant recovery container (6) from washer reservoir bottle (4).
- Remove coolant recovery container and drain.
