Sensor-Engine Coolant Temp: Installation: Installation-Diesel

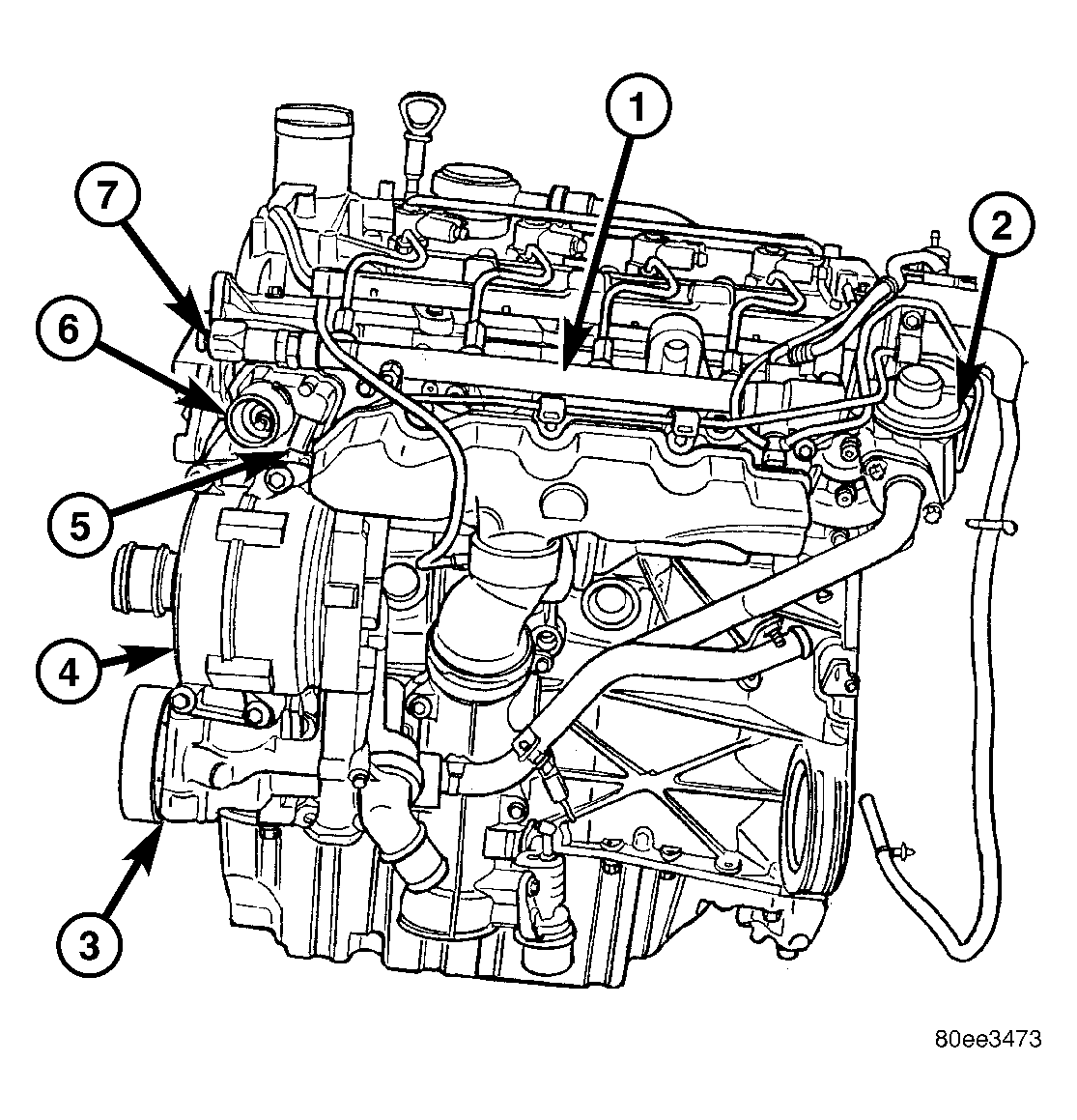

Fig 1: Thermostat And Sensor

Courtesy of CHRYSLER LLC

1 - FUEL RAIL

2 - EGR VALVE

3 - POWER STEERING PUMP

4 - GENERATOR

5 - COOLANT TEMPERATURE SENSOR

6 - THERMOSTAT HOUSING

7 - FUEL RAIL PRESSURE SENSOR

1. Position and install coolant temperature sensor (5).
2. Connect coolant temperature sensor electrical connector.

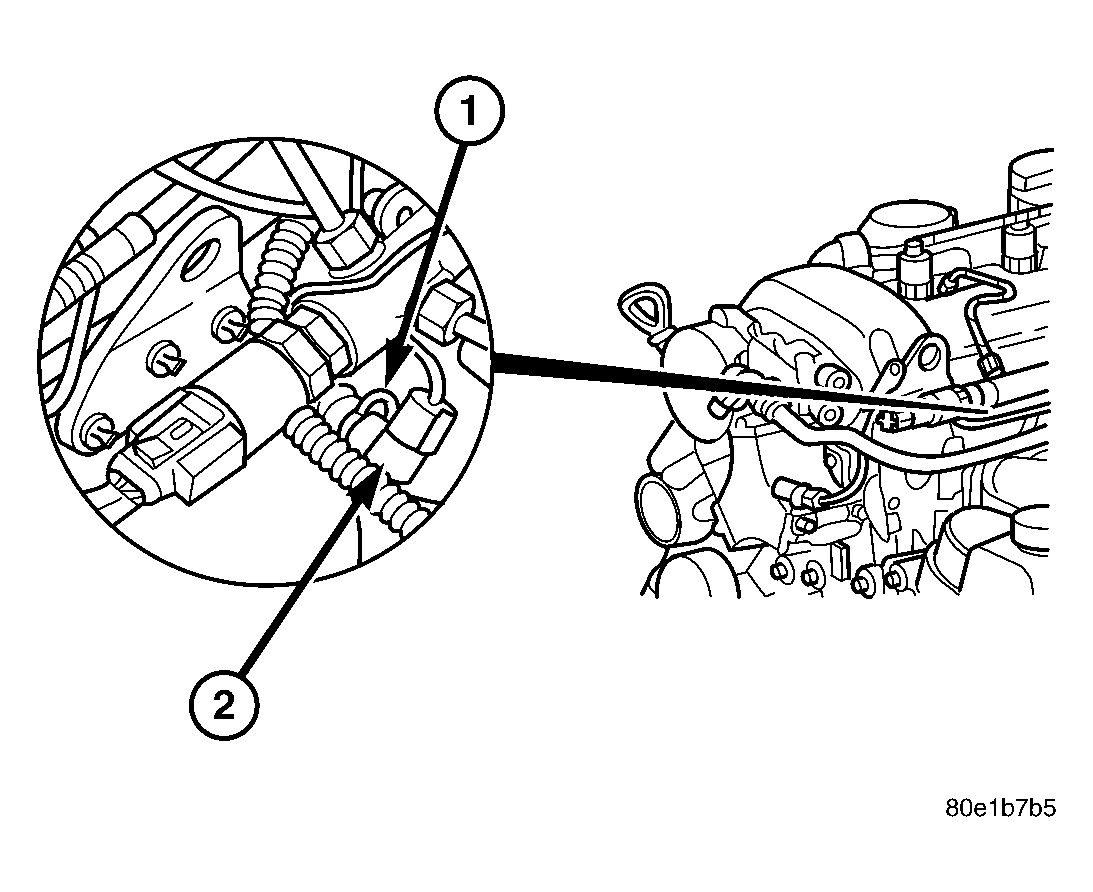

   Fig 2: ENGINE COOLANT TEMPERATURE SENSOR

   Courtesy of CHRYSLER LLC

   1 - RETAINING CLAMP

   2 - ENGINE COOLANT TEMPERATURE SENSOR

3. Refill coolant system to proper level with proper mixture of coolant. See STANDARD PROCEDURE .
4. Install engine cover. Refer to INSTALLATION - 2.0L. Refer to INSTALLATION - 2.4L.
5. Connect negative battery cable.
   WARNING: Use extreme caution when engine is operating. Do not stand in a direct line with fan. Do not put your hands near pulleys, belts or fan. Do not wear loose clothes.
6. Start engine and inspect for leaks.
