Ignition Control - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B2184-Ignition Unlock Run/Start Control Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

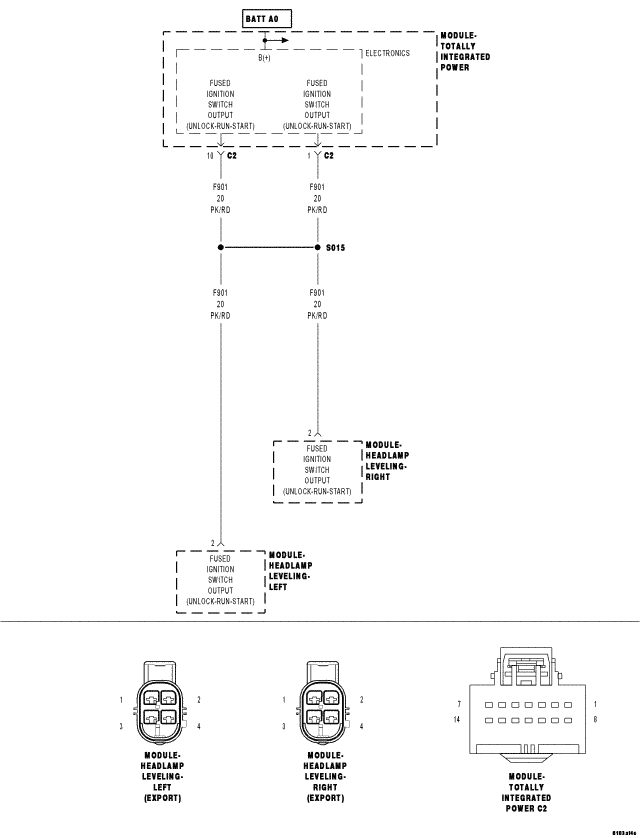

Fig 1: Ignition Unlock Run/Start Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
