Torque Specifications

NOTE: The main cap crossbolts are torqued after final torque of the main cap bolts. Always use a new washer/seal on crossbolts.

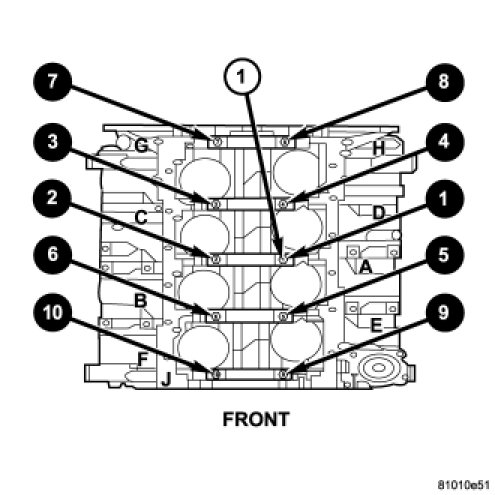

Install all cap bolts and alternately tighten in two steps using the following sequence.






Step 1 - 27 Nm ( 20 ft. lbs.).
Step 2 - Turn main cap bolts an additional 90°.
Step 3 - Install the crossbolts with new washer/gasket. Starting with crossbolt A torque each crossbolt to 28 Nm ( 21 ft. lbs.).
Step 4 - Repeat crossbolt torque procedure.
