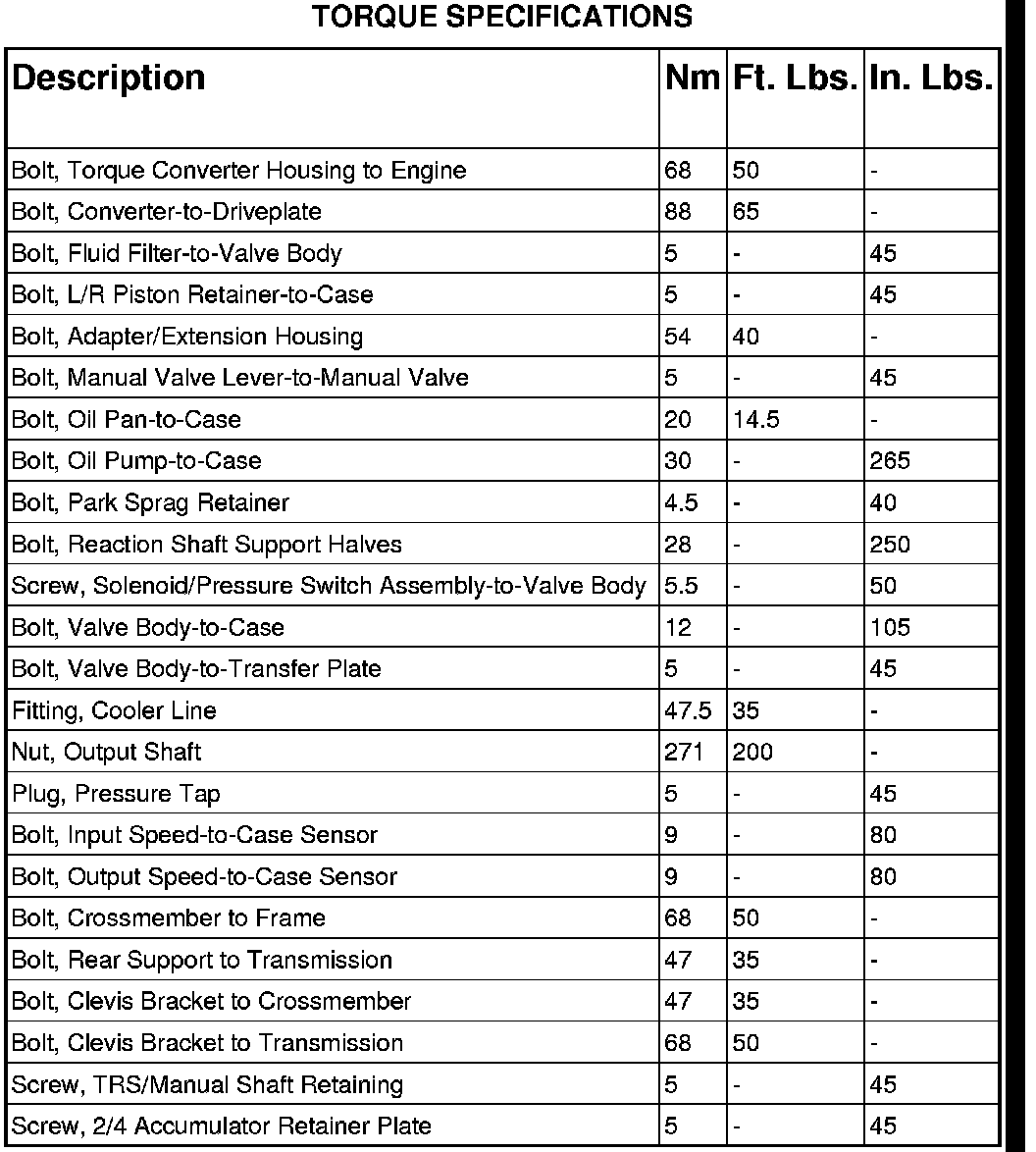

Torque Specifications

Torque Specifications






Flex Plate Torque And Sequence





Flexplate Retaining Bolts* 95 Nm (70 ft. lbs.)
*Tighten in sequence shown
