Liberty Limited, 4WD, Part Time
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P1593 To P2135
>>
P2118-Electronic Throttle Control Motor Current Performance
>>
Circuit Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Schematic

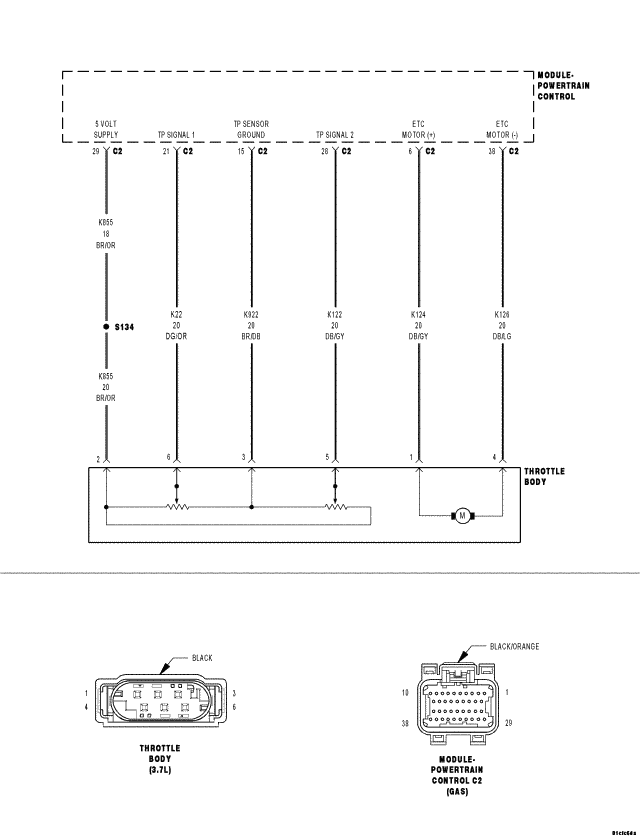

Fig 1: Throttle Body Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
