Circuit Schematic

WARNING: This page is about a different car, the 2008 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

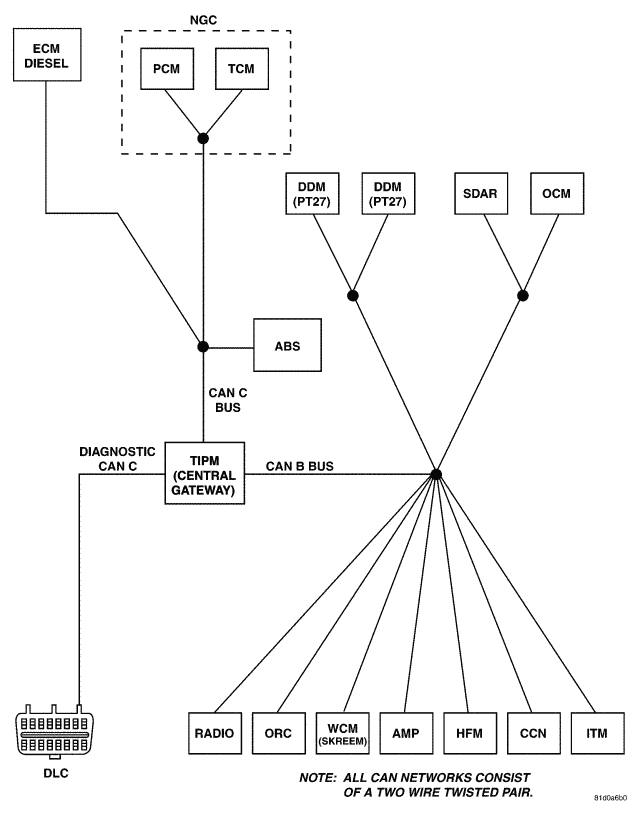

Fig 1: CAN Network Component Schematic
GC0071730Courtesy of CHRYSLER LLC
