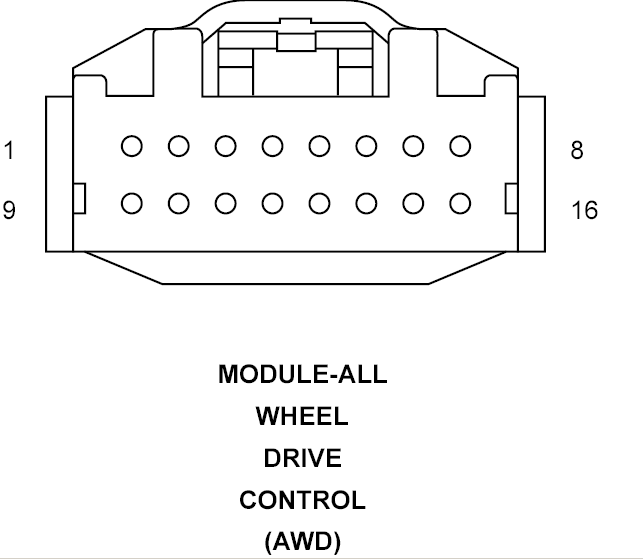

All Wheel Drive Control Module (AWD) Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-ALL WHEEL DRIVE CONTROL - 16-WAY (AWD)
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | D65 20WT/BK | CAN C BUS (+) |
| 5 | F202 20PK/GY | IGNITION SWITCH OUTPUT (RUN-START) |
| 6 | A923 20RD/WT | FUSED B(+) |
| 7 | - | - |
| 8 | T312 20YL/VT | REAR DIFFERENTIAL SOLENOID CONTROL |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | D64 20WT/LB | CAN C BUS (-) |
| 13 | - | - |
| 14 | - | - |
| 15 | Z967 20BK | GROUND |
| 16 | T78 20YL/BK | SOLENOID SUPPLY VOLTAGE |
