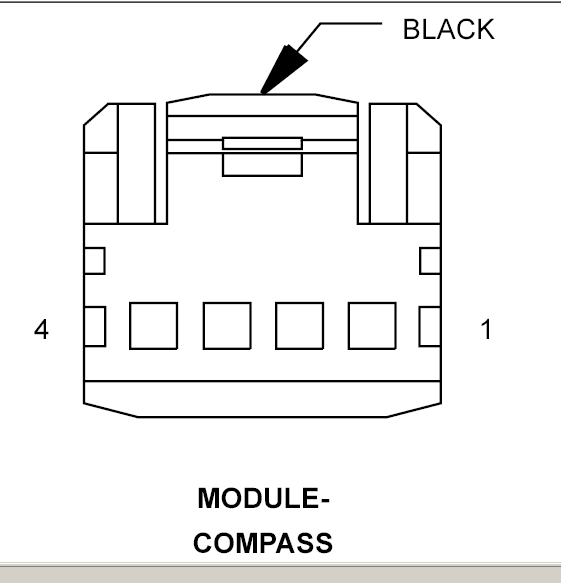

Compass Module Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-COMPASS - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
D506 20WT/DG |
LIN BUS |
| 3 |
Z937 20BK/YL |
GROUND |
| 4 |
F929 20PK/RD |
FUSED IGNITION SWITCH OUTPUT (RUN) |
