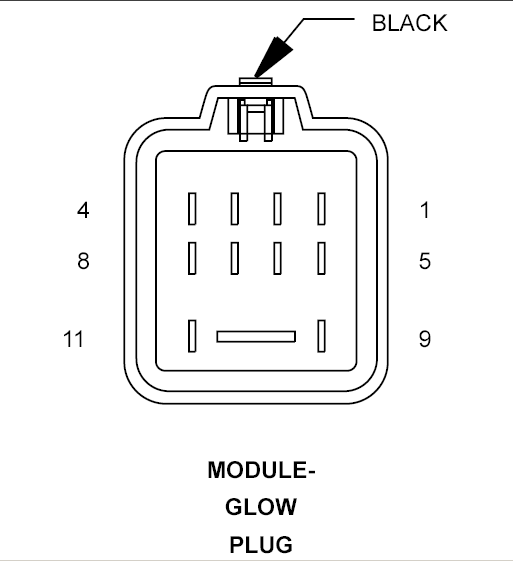

Glow Plug Module Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-GLOW PLUG - BLACK 11-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A202 14RD/WT | GLOW PLUG 1 CONTROL |
| 2 | A203 14RD/BR | GLOW PLUG 2 CONTROL |
| 3 | A204 14RD/YL | GLOW PLUG 3 CONTROL |
| 4 | A208 14RD/OR | GLOW PLUG 4 CONTROL |
| 5 | - | - |
| 6 | F344 18DB/LB | FUSED MAIN RELAY OUTPUT |
| 7 | Z924 16BK/LB | GROUND |
| 8 | - | - |
| 9 | D330 20VT/WT | GLOW PLUG MODULE SIGNAL |
| 10 | K202 20DB/BR | GLOW PLUG RELAY CONTROL |
| 11 | A29 10RD/GY | FUSED B(+) |
