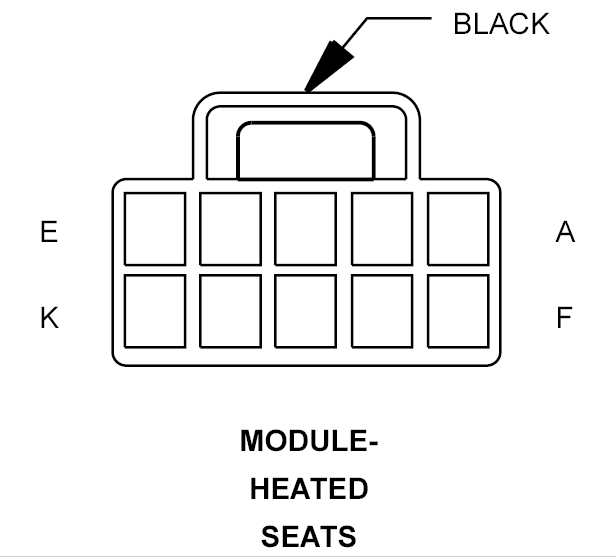

Heated Seats Module Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-HEATED SEATS - BLACK 10-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
- |
- |
| B |
- |
- |
| C |
- |
- |
| D |
P187 16LG/BR |
LEFT SEAT HEATER B(+) DRIVER |
| E |
F937 18PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN) |
| F |
Z960 18BK |
GROUND |
| G |
- |
- |
| H |
- |
- |
| J |
D506 20WT/DG |
LIN BUS |
| K |
P188 16LG/VT |
RIGHT SEAT HEATER B(+) DRIVER |
