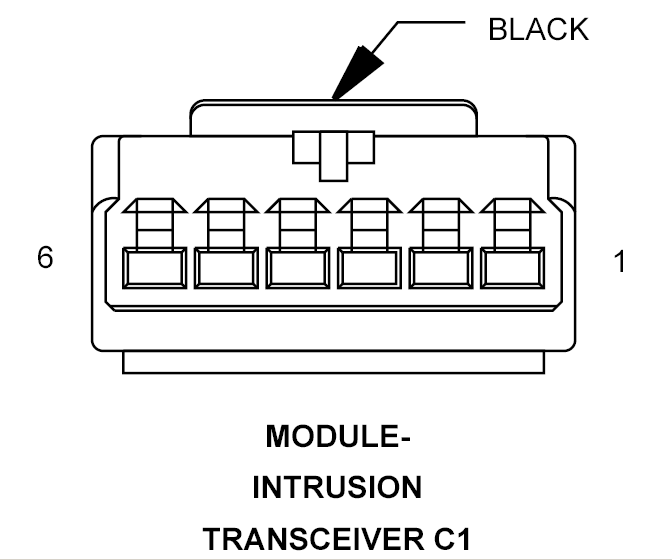

Intrusion Transceiver Module Connector End View (C1)
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-INTRUSION TRANSCEIVER C1 - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A415 20RD/TN |
FUSED B(+) (I.O.D.) |
| 2 |
- |
- |
| 3 |
D55 20WT/OR |
CAN B BUS (+) |
| 4 |
D54 20WT/PK |
CAN B BUS (-) |
| 5 |
D96 20WT/BR |
SIREN SIGNAL CONTROL |
| 6 |
Z941 20BK/WT |
GROUND |
