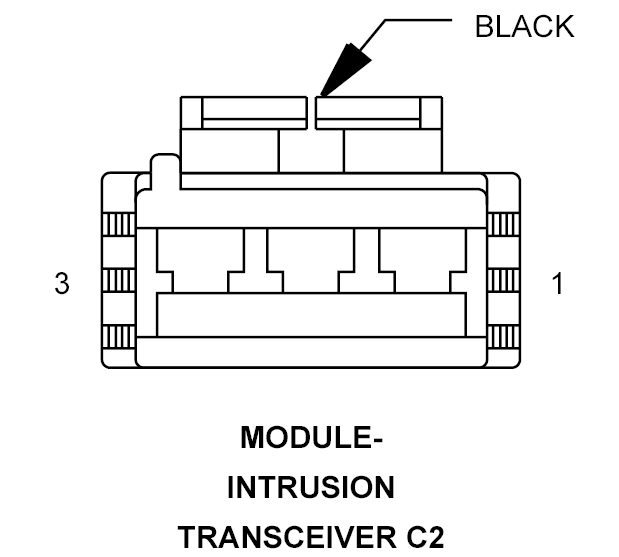

Intrusion Transceiver Module Connector End View (C2)
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-INTRUSION TRANSCEIVER C2 - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
M24 20YL/WT |
COURTESY LAMPS DRIVER |
| 3 |
Z941 20BK/WT |
GROUND |
