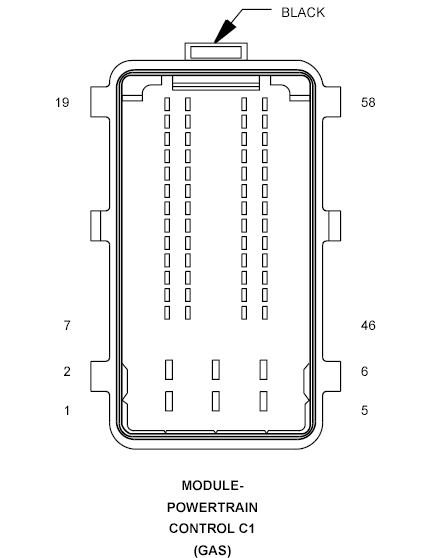

Powertrain Control Module (Gas) Connector End View (C1)
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-POWERTRAIN CONTROL C1 - BLACK 58-WAY (GAS)
| CAV | CIRCUIT | FUNCTION |
| 1 | F342 14BR/DG | FUSED MAIN RELAY OUTPUT |
| 2 | Z925 16BK/YL | GROUND |
| 3 | F342 14BR/DG | FUSED MAIN RELAY OUTPUT |
| 4 | Z925 16BK/YL | GROUND |
| 5 | - | - |
| 6 | - | - |
| 7 | K299 20BR/RD | O2 1/2 HEATER CONTROL |
| 8 | - | - |
| 9 | K152 20BR/LG | TIP RETURN (SRT4) |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | V937 20VT/LG | S/C SWITCH GROUND |
| 14 | - | - |
| 15 | F202 20PK/GY | IGNITION SWITCH OUTPUT (RUN-START) |
| 16 | A931 20RD/WT | FUSED B(+) |
| 17 | - | - |
| 18 | - | - |
| 19 | K31 20BR | FUEL PUMP CONTROL |
| 20 | K904 20DB/DG | O2 1/2 RETURN |
| 21 | K141 20DB/YL | O2 1/2 SIGNAL |
| 22 | K858 20BR/GY | 5 VOLT SUPPLY |
| 23 | F856 20YL/PK | 5 VOLT SUPPLY |
| 24 | - | - |
| 25 | T752 20DG/OR | STARTER CONTROL |
| 26 | V72 20OR/VT | S/C SIGNAL 2 |
| 27 | V71 20VT/OR | S/C SIGNAL 1 |
| 28 | - | - |
| 29 | K153 20BR/YL | TIP SIGNAL (SRT4) |
| 30 | K914 20DB/PK | SENSOR GROUND (MTX) |
| 31 | - | - |
| 32 | B15 20DG/WT | BRAKE SIGNAL 1 |
| 33 | - | - |
| 34 | K400 20BR/VT | APP SENSOR GROUND 2 |
| 35 | K70 20DB/BR | EVAP PURGE RETURN |
| 36 | K167 20BR/YL | APP SENSOR GROUND 1 |
| 37 | F963 20PK/DB | START ENABLE |
| 38 | K75 20DB/OR | VEHICLE SPEED SIGNAL (MTX) |
| 39 | K52 20DB/WT | EVAP PURGE CONTROL |
| 40 | - | - |
| 41 | D65 20WT/BK | CAN C BUS (+) |
| 42 | - | - |
| 43 | T26 20DG/OR | CLUTCH UPSTOP SIGNAL (SRT4) |
| 44 | - | - |
| 45 | K547 20GY/BR | TURBO COOLANT PUMP CONTROL (SRT4) |
| 46 | - | - |
| 47 | K107 20VT/WT | ESM SIGNAL |
| 48 | K29 20WT/BR | APP SIGNAL 2 |
| 49 | K23 20BR/OR | APP SIGNAL 1 |
| 50 | T141 20YL/RD | CLUTCH INTERLOCK SIGNAL |
| 51 | K137 20DB/OR | BOOST PRESSURE CONTROL (SRT4) |
| 52 | B16 20LB/DG | BRAKE SIGNAL 2 |
| 53 | A804 20RD/GY | GEN SENSE |
| 54 | D64 20WT/LB | CAN C BUS (-) |
| 55 | - | - |
| 56 | - | - |
| 57 | - | - |
| 58 | K51 20BR/WT | MAIN RELAY CONTROL |
