Sentry Key Remote Entry Module (Wireless Control Module) Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

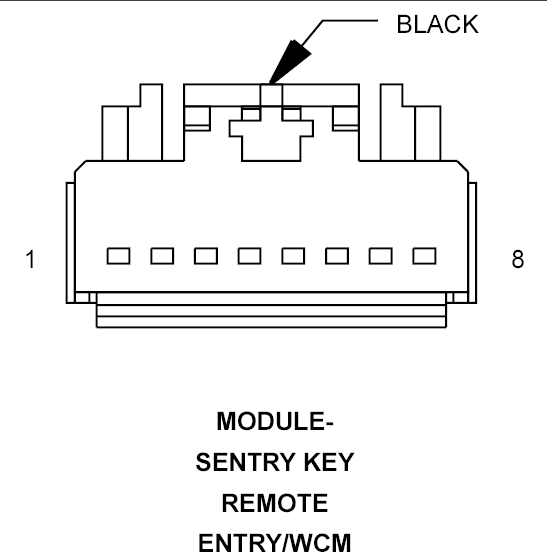

MODULE-SENTRY KEY REMOTE ENTRY/WCM - BLACK 8-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | G20 20VT/BR | IGNITION SWITCH SENSE |
| 2 | D508 20WT/GY | COM-LIN TIRE PRESSURE MONITOR LAN (TIRE PRESSURE MONITOR) |
| 3 | F20 20PK/WT | IGNITION SWITCH OUTPUT (RUN-START) |
| 4 | Z937 20BK/YL | GROUND |
| 5 | A411 20RD/LG | FUSED B(+) (I.O.D.) |
| 6 | D55 20WT/OR | CAN B BUS (+) |
| 7 | D54 20WT/PK | CAN B BUS (-) |
| 8 | - | - |
