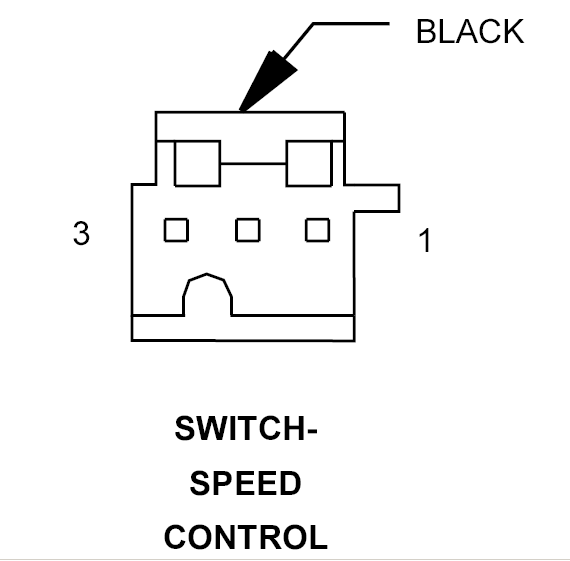

Speed Control Switch Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-SPEED CONTROL - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
V72 20PK |
S/C SIGNAL 2 |
| 2 |
V71 20VT |
S/C SIGNAL 1 |
| 3 |
V937 20YL |
S/C SWITCH GROUND |
