Steering Control Module Connector End View (C4)
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

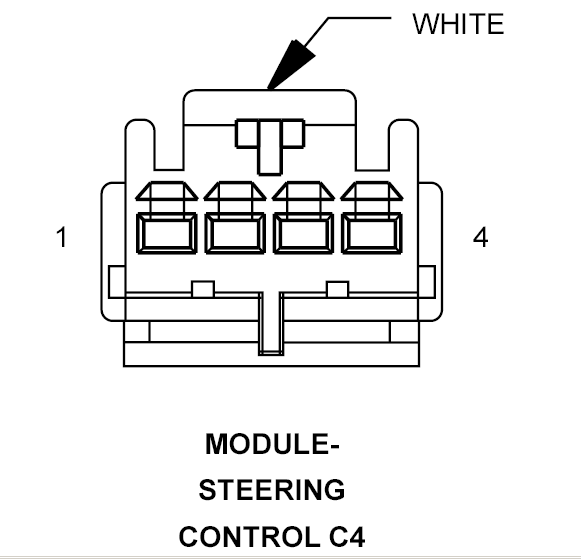

MODULE-STEERING CONTROL C4 - WHITE 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R63 18LG/BK |
DRIVER SQUIB 2 LINE 1 |
| 2 |
R61 18LG/VT |
DRIVER SQUIB 2 LINE 2 |
| 3 |
R45 18LG/RD |
DRIVER SQUIB 1 LINE 1 |
| 4 |
R43 18LG/BR |
DRIVER SQUIB 1 LINE 2 |
