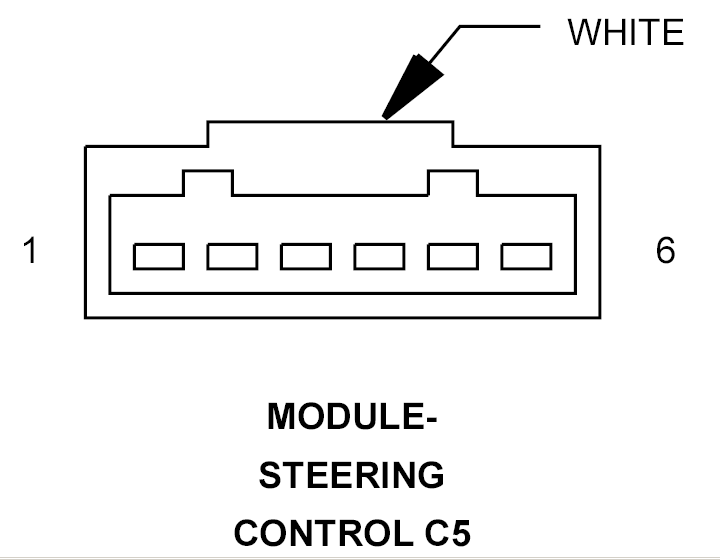

Steering Control Module Connector End View (C5)
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-STEERING CONTROL C5 - WHITE 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X20 20GY |
RADIO CONTROL MUX |
| 1 |
X20 20GY |
RADIO CONTROL MUX |
| 2 |
Y13 20BK |
RADIO CONTROL RETURN |
| 2 |
Y13 20BK |
RADIO CONTROL RETURN |
| 3 |
X3 20DB |
HORN SWITCH SENSE |
| 4 |
V72 20PK |
S/C SIGNAL 2 |
| 5 |
V71 20VT |
S/C SIGNAL 1 |
| 6 |
V937 20YL |
S/C SWITCH GROUND |
