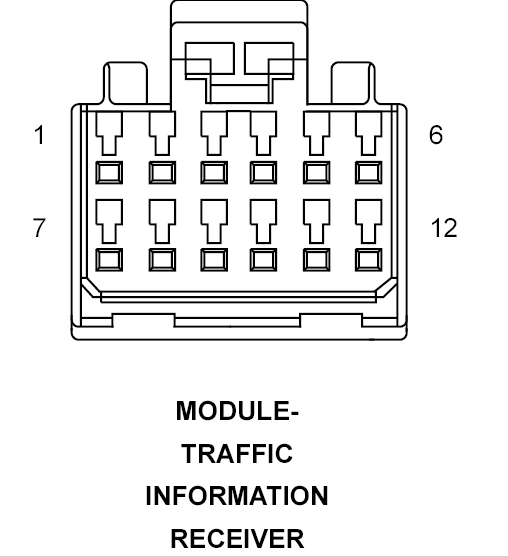

Traffic Information Receiver Module Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
MODULE-TRAFFIC INFORMATION RECEIVER - 12-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A413 20RD/LB |
FUSED B(+) (I.O.D.) |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
D55 20WT/OR |
CAN B BUS (+) |
| 6 |
- |
|
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
D54 20WT/PK |
CAN B BUS (-) |
| 12 |
Z909 20BK |
GROUND |
