Keyless Entry Module

Component ID: 157

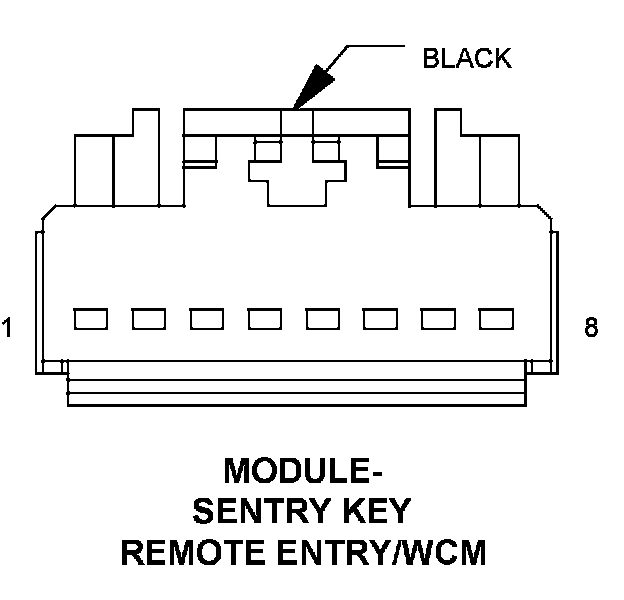

Component : MODULE-SENTRY KEY REMOTE ENTRY/WCM

Connector:
Name : MODULE-SENTRY KEY REMOTE ENTRY/WCM
Color : BLACK
# of pins : 8




Pin Circuit Description
1 G20 22VT/BR IGNITION SWITCH SENSE
2 - -
3 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 Z914 18BK GROUND
5 A412 18RD FUSED B(+) (I.O.D.)
6 D65 20WT/BK CAN C BUS (+)
7 D64 20WT/LB CAN C BUS (-)
8 - -
