Main Relay (Computer/Fuel System): Diagrams

Component ID: 171

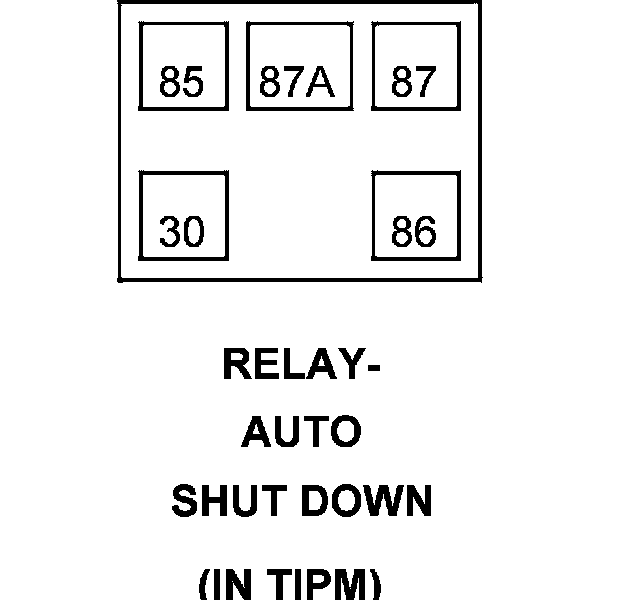

Component : RELAY-AUTO SHUT DOWN

Connector:
Name : RELAY-AUTO SHUT DOWN
Color :
# of pins : 0




30 INTERNAL B(+)
85 INTERNAL B(+)
86 K51 20BR/WT ASD RELAY CONTROL
87 INTERNAL ASD RELAY OUTPUT
87A - -
