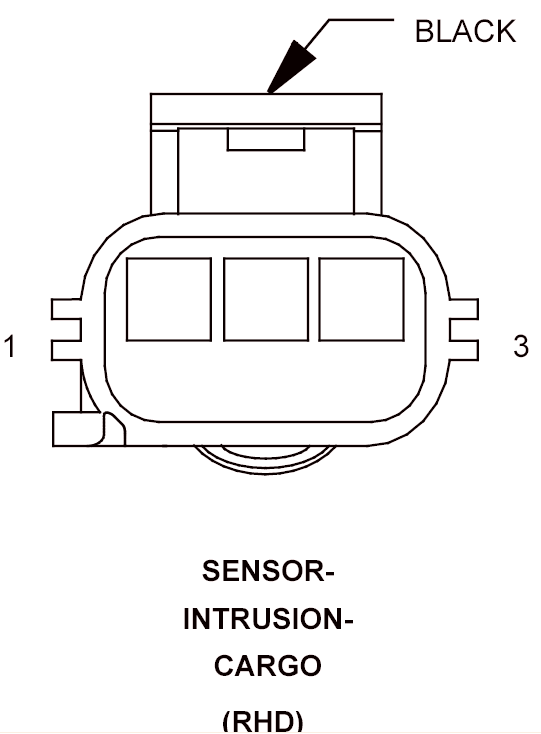

Intrusion Cargo Sensor (RHD) Connector End View
SENSOR-INTRUSION-CARGO - BLACK 3 WAY (RHD)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A412 18RD |
FUSED B(+) (I.O.D.) |
| 2 |
D122 20WT/LG |
LIN BUS |
| 3 |
Z912 18BK |
GROUND |
