Compass Module - Installation

INSTALLATION

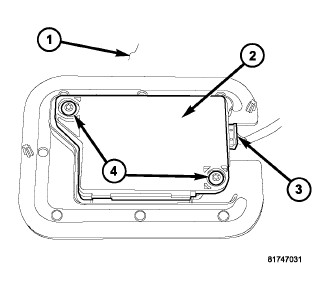

1. Position the Remote Compass Module (RCM) (2) into the bracket on the upper side of the headliner (1).
2. Install the RCM retaining screws (4).
3. Connect the electrical connector (3).
4. Install the headliner assembly, Headliner - Installation.
5. Connect the battery negative cable.
6. Perform the Compass Variation Adjustment, Service and Repair.
7. Perform the Compass Calibration, Service and Repair.
8. Verify proper compass operation.
