Door Module - Installation

INSTALLATION





1. Position module on door trim panel and install fasteners.

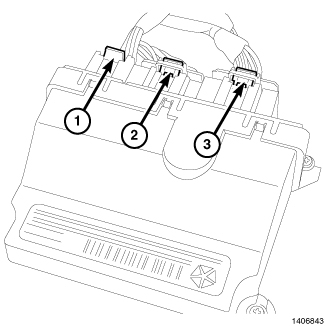

2. If applicable, first connect the black 12-way electrical connector (3), then connect the brown 20-way electrical connector (2). The connect the black 10-way electrical connector to the module (1).
3. Install the door trim panel Front Door Trim Panel - Installation.
4. Connect the battery negative cable.
