Door Module - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the door trim panel Front Door Trim Panel - Removal.

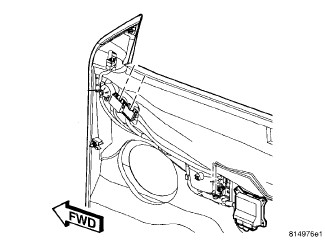

3. First disconnect the black 10-way electrical connector (1), then the brown 20-way electrical connector (2). If applicable, next disconnect the black 12-way electrical connector (3) from the module.
4. Remove fasteners and module from vehicle.
