Liftgate - Installation

INSTALLATION






NOTE: A suitable body sealant should be used when removing or moving the hinges.

1. Position the liftgate onto the vehicle and install the six body bolts (1).
2. Tighten the bolts to 28 Nm (21 ft. lbs.).

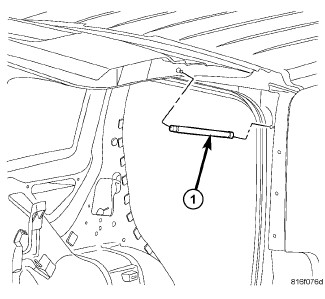

3. Install the support struts (1). Gas Prop - Installation.





4. Check and adjust the liftgate if necessary. Liftgate - Adjustments
5. Position the upper rear header trim and seat fully.
