Shift Motor with Mode Sensor - Installation

INSTALLATION





1. Verify that the shift motor o-ring is clean and properly positioned inside the machined o-ring groove of the shift motor.

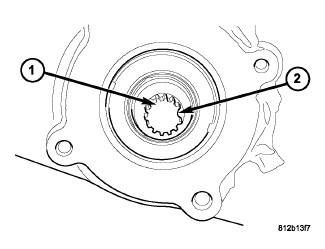

NOTE: Verify that the missing tooth (2) in the shift motor drive spline (1).

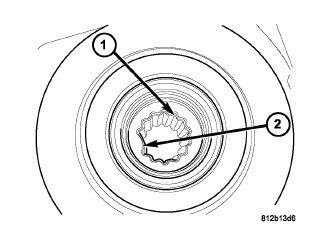

NOTE: .and the transfer case drive spline (1) missing tooth (2) are aligned. It may be necessary to manually shift the transfer case if the shift motor and transfer case shaft are not aligned.

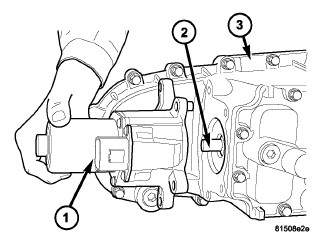

2. Position the shift motor and mode sensor assembly (1) onto the transfer case (3) and shift sector (2).

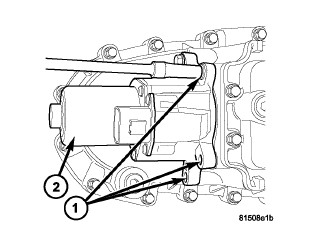

3. Install the bolts (1) to hold the assembly (2) onto the transfer case. Tighten the bolts to 25-28 Nm (18.5-20.5 ft.lbs.).

CAUTION: If the original shift motor and mode sensor assembly bolts are reused, be sure to use Mopar(R) Lock & Seal or Loctite(TM) 242 to replenish the lock patch material originally found on the bolts

4. Engage the wiring connector to the shift motor and mode sensor assembly.
5. Lower vehicle and verify transfer case operation.
