Circuit Schematic

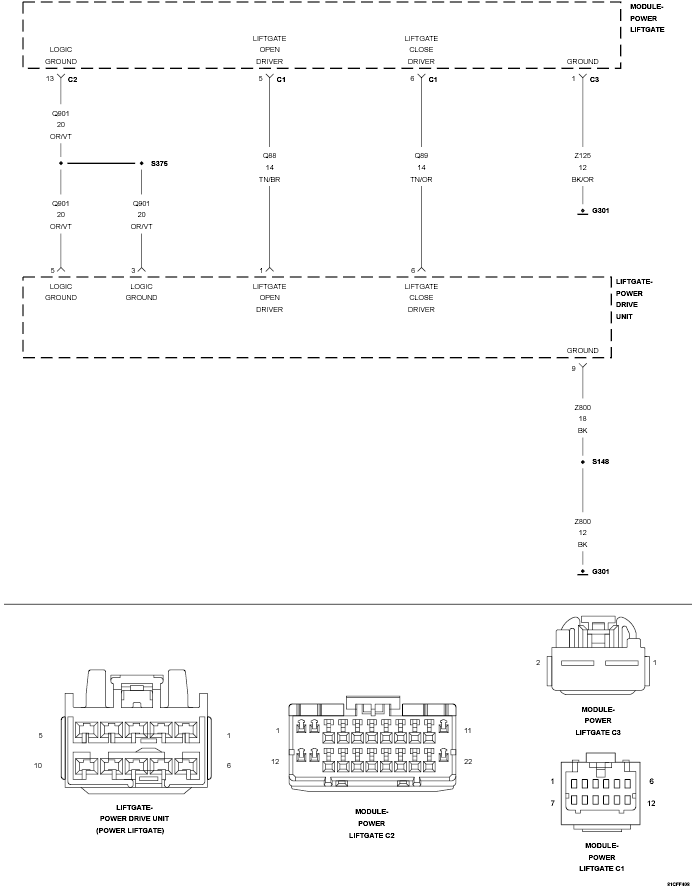

Fig 1: Liftgate Open/Close Driver Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
