Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Power Liftgate Module (PLGM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B196F-Power Liftgate Open Direction - Ratchet Primary Switch Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

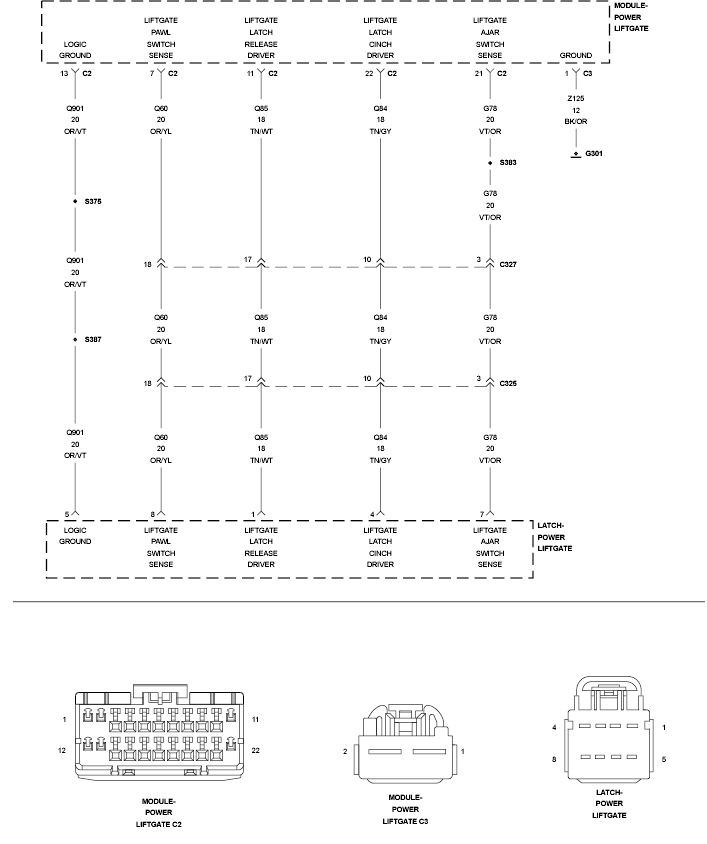

Fig 1: Liftgate Latch Cinch Driver & Latch Secondary Position Sense Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
