Anti-Theft Systems
>>
Power Liftgate Module (PLGM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1977-Power Liftgate Open Direction - Sector Switch Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

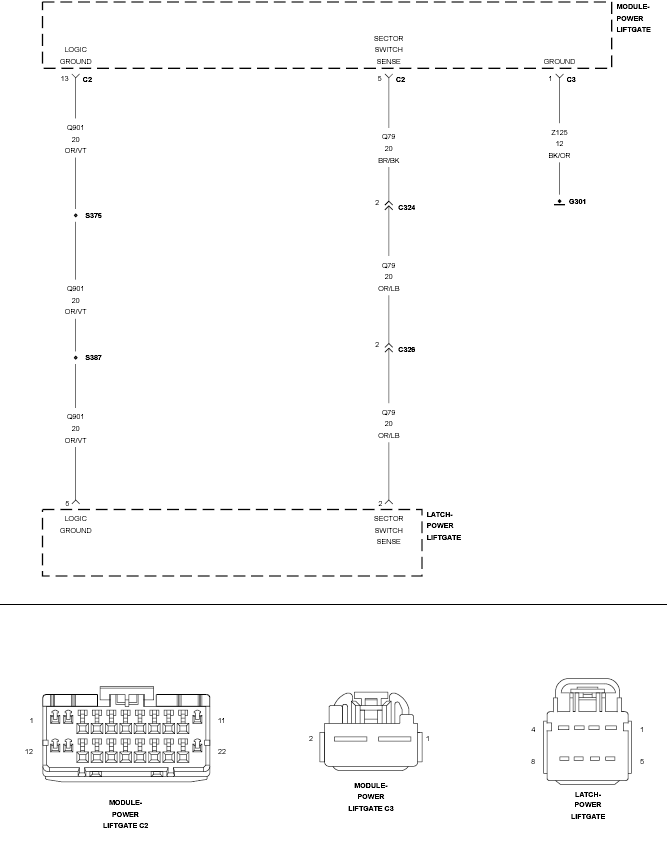

Fig 1: Sector Switch Sense Circuit Schematic
