No Response From PLGM (Power Liftgate Module): Notes

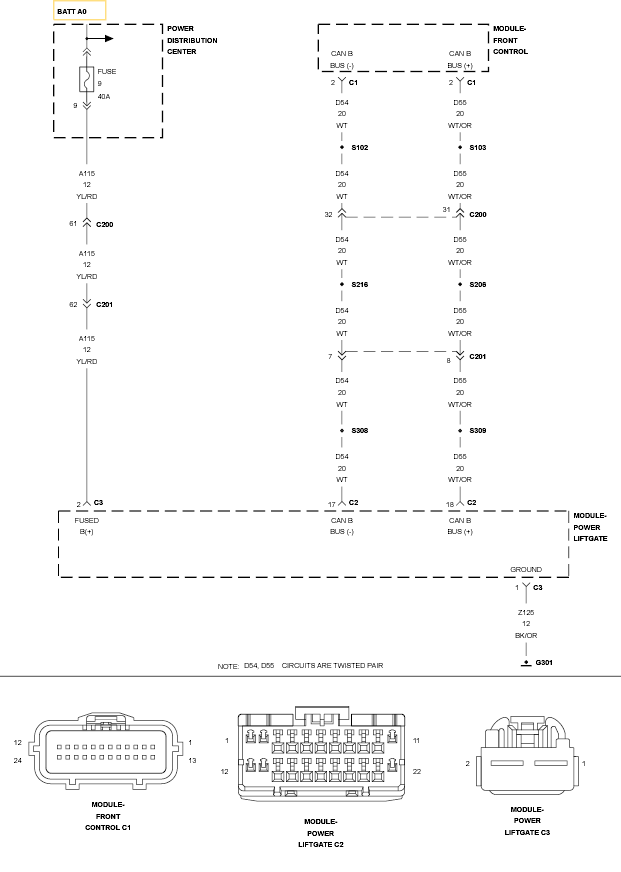

Fig 1: PLGM CAN B BUS, Fused B(+) & Ground Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A115) FUSED B (+) CIRCUIT OPEN OR SHORTED
(Z125) GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
POWER LIFTGATE MODULE
