U0161-Lost Communication With Compass Module
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

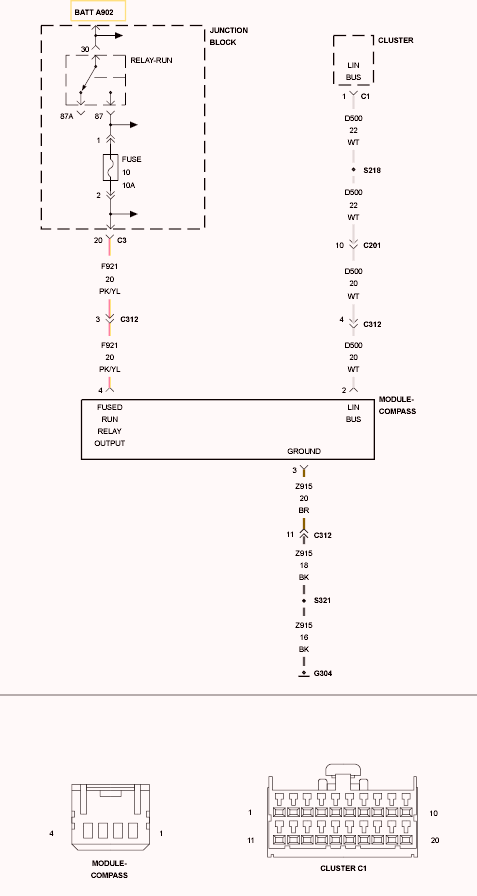

Fig 1: LIN BUS & Fused Run Relay Output Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
