Park Assist Module (PTS) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B128F-11-PTS Sensor 2-Circuit Short To Ground
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

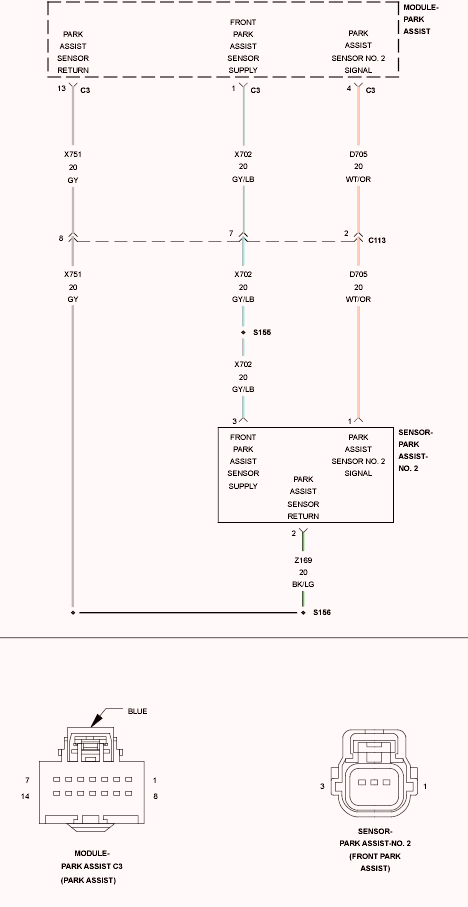

Fig 1: Park Assist Sensor No. 2 Signal Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
